LF205-S Current Transducer

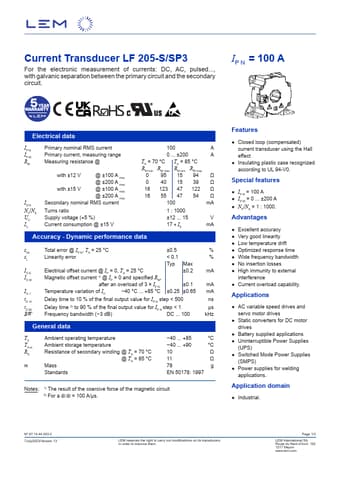

Current Transducer LF 205-S/SP3 For the electronic measurement of currents: DC, AC, pulsed, with galvanic separation between the primary circuit and the secondary circuit. IP N = 100 A Electrical data IP N Primary nominal RMS current IP M Primary current, measuring range RM Measuring resistance @ with ±12 V @ ±100 A max @ ±200 A max with ±15 V @ ±100 A max @ ±200 A max IS N Secondary nominal RMS current NP/NS UC IC Turns ratio Supply voltage (+5 %) Curr.

LF205-S Features

* Closed loop (compensated) current transducer using the Hall effect

* Insulating plastic case recognized according to UL 94-V0. Special features

* IP N = 100 A

* IP M = 0 ±200 A

* NP/NS = 1 : 1000. Advantages

* Excellent accuracy

* Very good linearity

* Low temperat

LF205-S Datasheet (512.36 KB)

LF205-S Datasheet Preview — Preview of LF205-S PDF

Datasheet Details

Part number:

LF205-S

Manufacturer:

LEM

File Size:

512.36 KB

Description:

Current transducer.
