GS1003FL - SURFACE MOUNT RECTIFIER DIODES

This page provides the datasheet information for the GS1003FL, a member of the GS1000FL SURFACE MOUNT RECTIFIER DIODES family.

Datasheet Summary

Features

  • ! For surface mounted.

📥 Download Datasheet

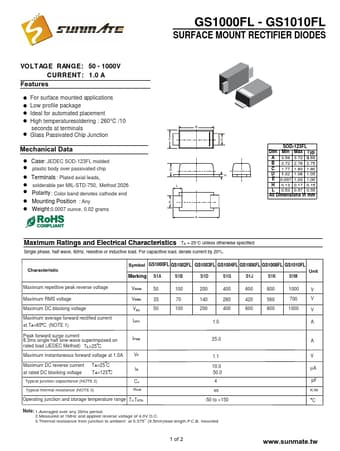

Datasheet preview – GS1003FL

Datasheet Details

Part number GS1003FL
Manufacturer SunMate
File Size 136.93 KB
Description SURFACE MOUNT RECTIFIER DIODES
Datasheet download datasheet GS1003FL Datasheet
Additional preview pages of the GS1003FL datasheet.

📁 Similar Datasheet

  • GS10000FL - 1.0A Surface Mount Glass Passivated Standard Diode (SINLOON)
  • GS1000FL - SURFACE GENERAL PURPOSE RECTIFIERS (Pan Jit International)
  • GS1000FL - 1.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE (WON-TOP ELECTRONICS)
  • GS1000FL - SURFACE MOUNT RECTIFIER (UPM)
  • GS1000FL - 1.0A General Purpose Rectifier (DIOFIT)
  • GS1000FL - SMALL SURFACE MOUNT SUPER FAST DIODES (TAYCHIPST)
  • GS1000FL - 1.0A General Purpose Rectifier (YENYO)
  • GS1000FL - GENERAL PURPOSE RECTIFIER (JIEJIE)
  • GS1001 - MAGNETIC SENSOR (Cherry)
  • GS1001FL - SURFACE GENERAL PURPOSE RECTIFIERS (Pan Jit International)
Other Datasheets by SunMate
  • GS1000FL - SURFACE MOUNT RECTIFIER DIODES
  • GS1002FL - SURFACE MOUNT RECTIFIER DIODES
  • GS1004FL - SURFACE MOUNT RECTIFIER DIODES
  • GS1006FL - SURFACE MOUNT RECTIFIER DIODES
  • GS1008FL - SURFACE MOUNT RECTIFIER DIODES
  • GS1010FL - SURFACE MOUNT RECTIFIER DIODES
  • GS1A - SURFACE MOUNT RECTIFIER DIODES
  • GS1B - SURFACE MOUNT RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text
GS1000FL - GS1010FL SURFACE MOUNT RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 1.0 A Features ! For surface mounted applications ! Low profile package ! Ideal for automated placement ! High temperaturesoldering : 260°C /10 seconds at terminals ! Glass Passivated Chip Junction Mechanical Data ! Case: JEDEC SOD-123FL molded ! plastic body over passivated chip ! Terminals : Plated axial leads, ! solderable per MIL-STD-750, Method 2026 ! Polarity : Color band denotes cathode end ! Mounting Position : Any ! Weight:0.0007 ounce, 0.02 grams B CE D L E A H SOD-123FL Dim Min Max Typ A 3.58 3.72 3.65 B 2.72 2.78 2.75 C 1.77 1.83 1.80 D 1.02 1.08 1.05 E 0.097 1.03 1.00 H 0.13 0.17 0.15 L 0.53 0.57 0.
