SMZ2516, SMZ253A, SILICON ZENER DIODES

SMZ253A - SMZ25D0 SURFACE MOUNT SILICON ZENER DIODES VOLTAGE RANGE: 3.0 - 200V POWER: 1.3Wa t t s .

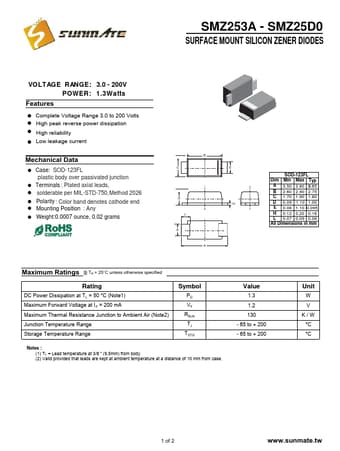

datasheet Preview Page 1 from Datasheet4u.com

SMZ253A-SunMate.pdf

SMZ2516 Datasheet Preview — This datasheet PDF includes multiple part numbers: SMZ2516, SMZ253A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SMZ2516, SMZ253A

Manufacturer:

SunMate

File Size:

258.85 KB

Description:

SILICON ZENER DIODES

Note:

This datasheet PDF includes multiple part numbers: SMZ2516, SMZ253A.
Please refer to the document for exact specifications by model.

Features

* ! Complete Voltage Range 3.0 to 200 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case: SOD-123FL plastic body over passivated junction ! Terminals : Plated axial leads, ! solderable per MIL-STD-750,Method 2026 ! Polarity : Color band denotes
