1N3064 - SMALL SIGNAL DIODES

Sunmate

1N3064 Description

1N3064 SMALL SIGNAL DIODES .

1N3064 Features

* ! Switching diode ! Metallurgically bonded Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Rating

📥 Download Datasheet

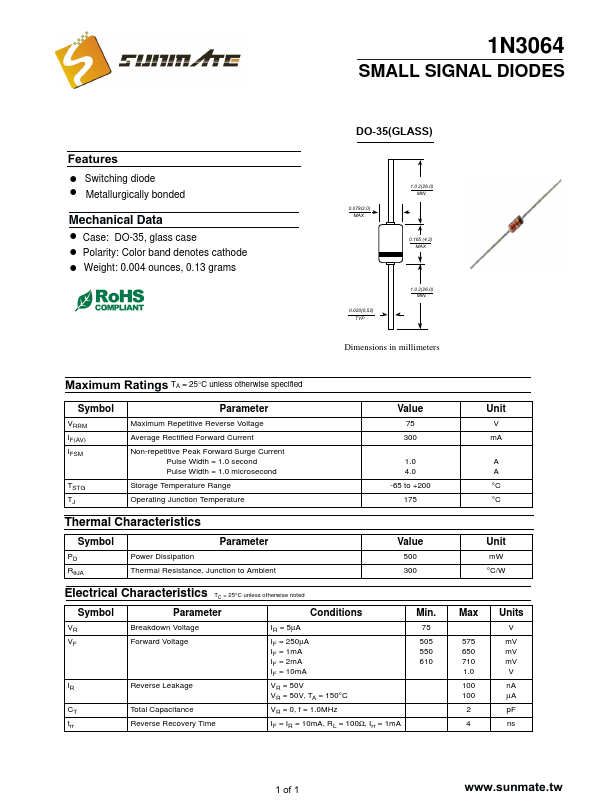

1N3064 Datasheet Preview — Preview of 1N3064 PDF

Datasheet Details

Part number: 1N3064
Manufacturer: Sunmate
File Size: 233.64 KB
Datasheet: 1N3064-Sunmate.pdf
Description: SMALL SIGNAL DIODES
