1N4004, 1N4001 - AXIAL LEADED RECTIFIER DIODES

1N4004 Description

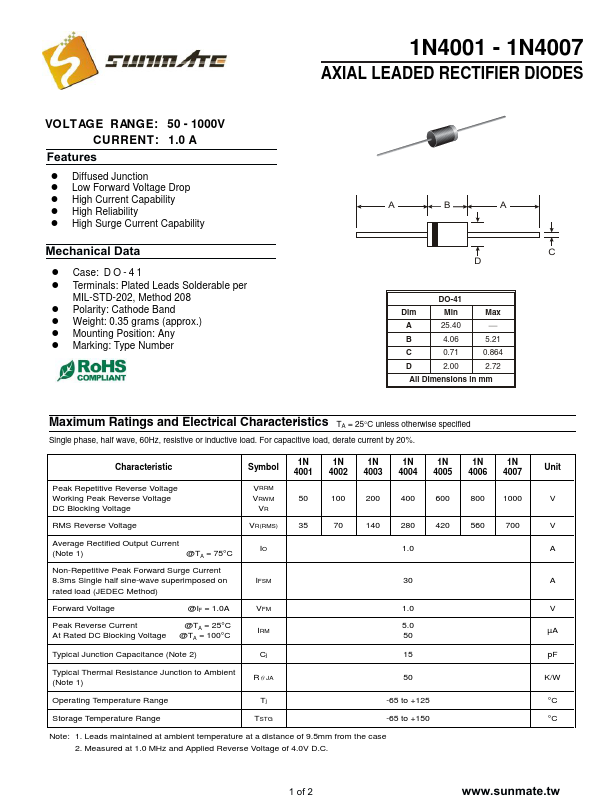

1N4001 - 1N4007 AXIAL LEADED RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 1.0 A .

1N4004 Features

* ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case: D O - 4 1 ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.35 grams (approx. ) ! Mounting Position:

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4004, 1N4001. Please refer to the document for exact specifications by model.

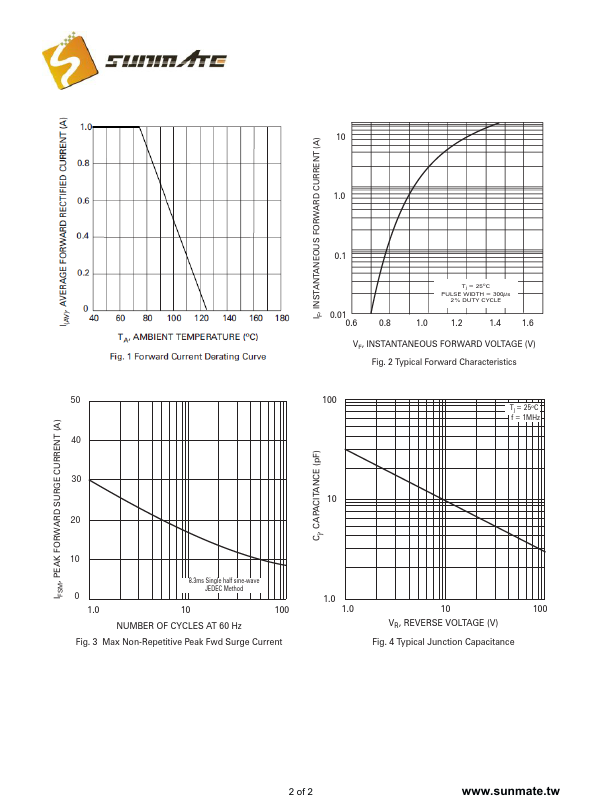

datasheet Preview Page 2

Datasheet Details

Part number
1N4004, 1N4001
Manufacturer
Sunmate
File Size
144.28 KB
Datasheet
1N4001-Sunmate.pdf
Description
AXIAL LEADED RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: 1N4004, 1N4001.
Please refer to the document for exact specifications by model.
