1N4004FL - General Purpose Plastic Rectifier

Product Overview

SMC Diode

📥 Download Datasheet

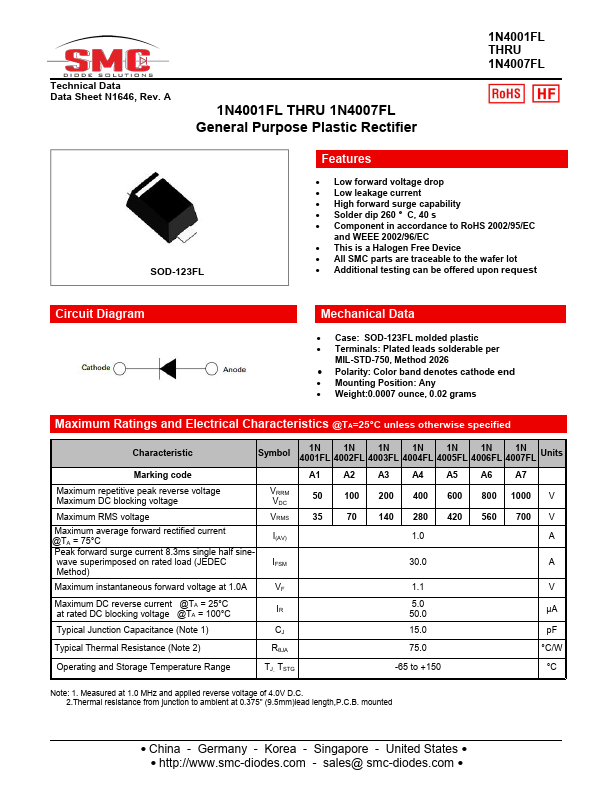

1N4004FL General Purpose Plastic Rectifier by SMC Diode - Datasheet Preview — Datasheet preview – 1N4004FL

Datasheet Details

Part number	1N4004FL
Manufacturer	SMC Diode
File Size	314.64 KB
Description	General Purpose Plastic Rectifier
Datasheet	1N4004FL Datasheet
Note	This datasheet PDF includes multiple part numbers: 1N4004FL, 1N4001FL. Please refer to the document for exact specifications by model.

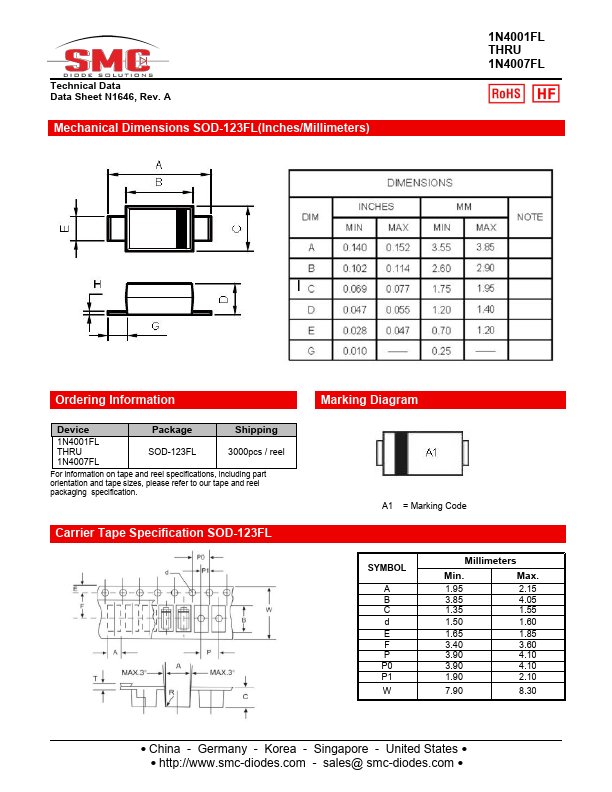

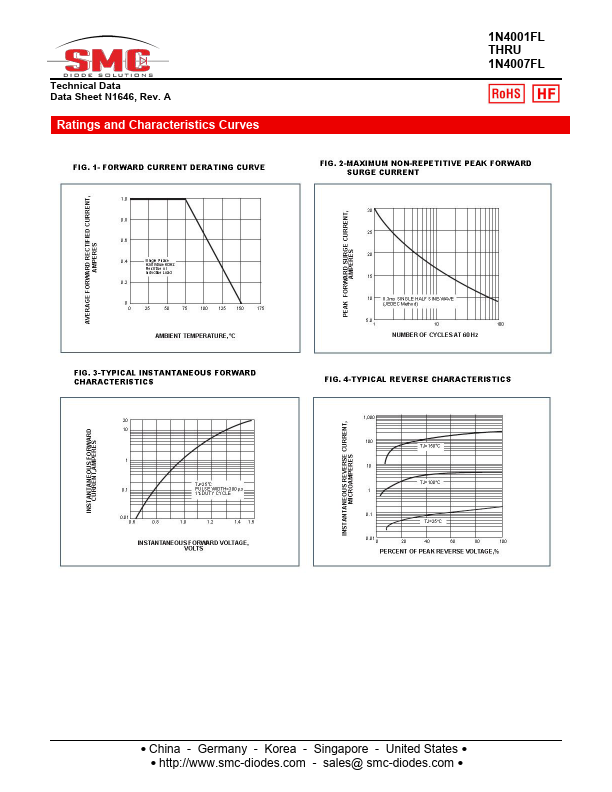

Additional preview pages of the 1N4004FL datasheet.

Product details

Features

Low forward voltage drop.
Low leakage current.
High forward surge capability.
Solder dip 260 °C, 40 s.
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
This is a Halogen Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: SOD-123FL molded plastic.
Terminals: Plated leads solderable per MIL-STD-750, Method 2026.
Polarity: Color band.
