1N4933 - FAST RECOVERY RECTIFIER DIODES

1N4933 Description

1N4933 - 1N4937 FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50 - 600V CURRENT: 1.0 A .

1N4933 Features

* ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case: D O - 4 1 Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.34 grams (approx. ) ! Moun

📥 Download Datasheet

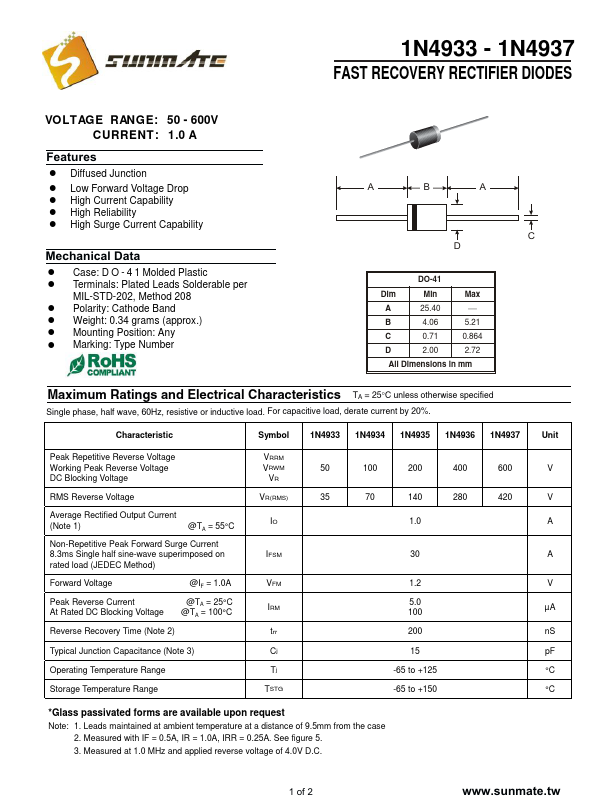

Preview of 1N4933 PDF

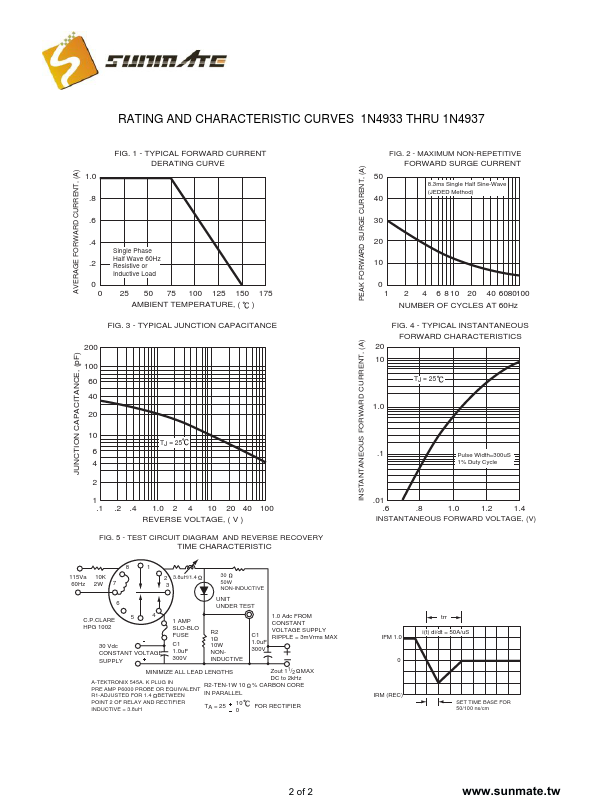

datasheet Preview Page 2

Datasheet Details

Part number
1N4933
Manufacturer
Sunmate
File Size
132.07 KB
Datasheet
1N4933-Sunmate.pdf
Description
FAST RECOVERY RECTIFIER DIODES
