1N4935 - FAST RECOVERY RECTIFIER DIODES

Product Overview

Sunmate

Part number	1N4935
Manufacturer	Sunmate
File Size	132.07 KB
Description	FAST RECOVERY RECTIFIER DIODES
Datasheet	1N4935 Datasheet
Note	This datasheet PDF includes multiple part numbers: 1N4935, 1N4933. Please refer to the document for exact specifications by model.

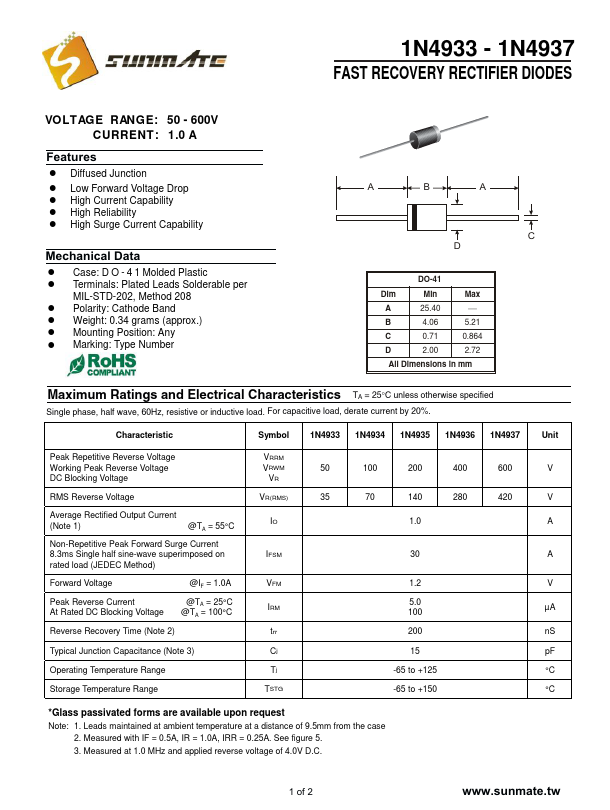

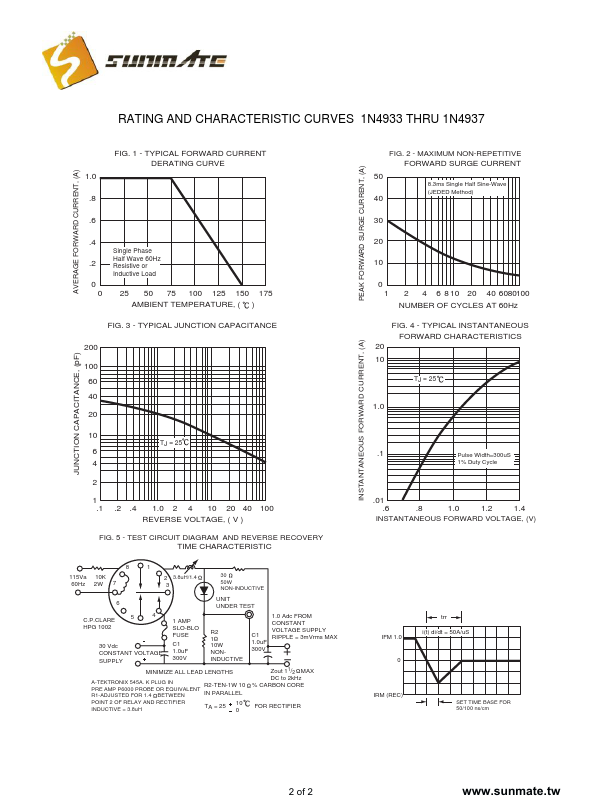

Additional preview pages of the 1N4935 datasheet.

! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case: D O - 4 1 Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.34 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number A B A C D DO-41 Dim Min Max A 25.40 ¾ B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 All Dimensions in mm Maximum Ratings and Electrical Character.
