1N6263W - SURFACE MOUNT SCHOTTKY BARRIER DIODE

Sunmate

📥 Download Datasheet

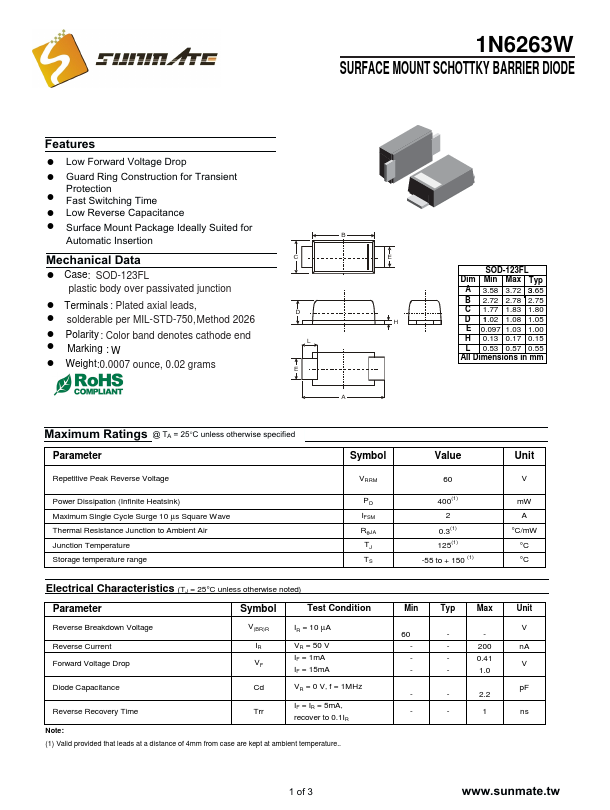

1N6263W Datasheet Preview — Preview of 1N6263W PDF

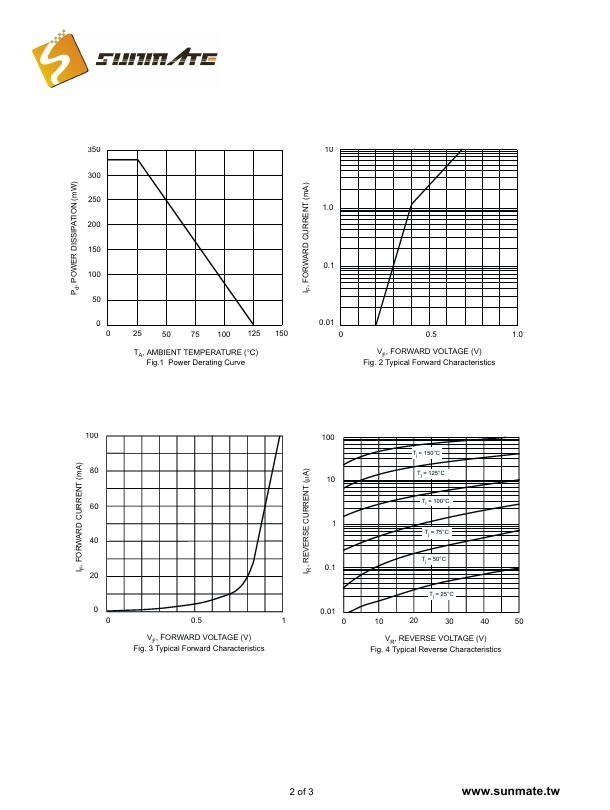

datasheet Preview Page 2

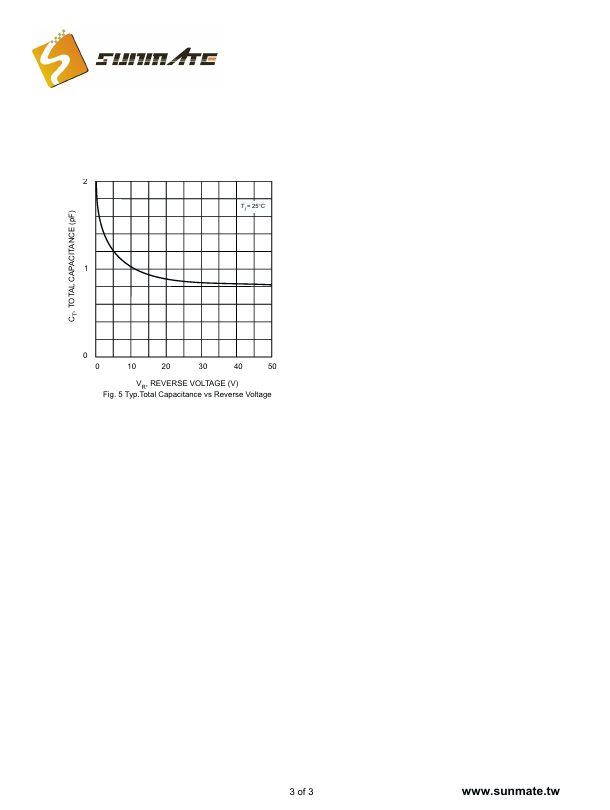

datasheet Preview Page 3

Datasheet Details

Part number: 1N6263W
Manufacturer: Sunmate
File Size: 579.21 KB
Datasheet: 1N6263W-Sunmate.pdf
Description: SURFACE MOUNT SCHOTTKY BARRIER DIODE

1N6263W Product details

Features

! Low Forward Voltage Drop ! Guard Ring Construction for Transient Protection ! Fast Switching Time ! Low Reverse Capacitance ! Surface Mount Package Ideally Suited for Automatic Insertion B Mechanical Data C E ! Case: SOD-123FL plastic body over passivated junction ! Terminals : Plated axial leads, ! solderable per MIL-STD-750,Method 2026 D H ! Polarity : Color band denotes cathode end ! Marking : W L ! Weight:0.0007 ounce, 0.02 grams E A SOD-123FL Dim Min Max Typ A 3.58 3.7.
