1S2075 - SILICON EPITAXIAL PLANAR DIODE

1S2075 Description

.

1S2075 Features

* ! Low capacitance. (C = 3.5pF max) ! Short reverse recovery time. (t rr = 8.0ns max) ! High reliability with glass seal. Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams 1S2075 SILICON EPITAXIAL PLANAR DIODE DO-35(GLASS) 0.079(2.0

📥 Download Datasheet

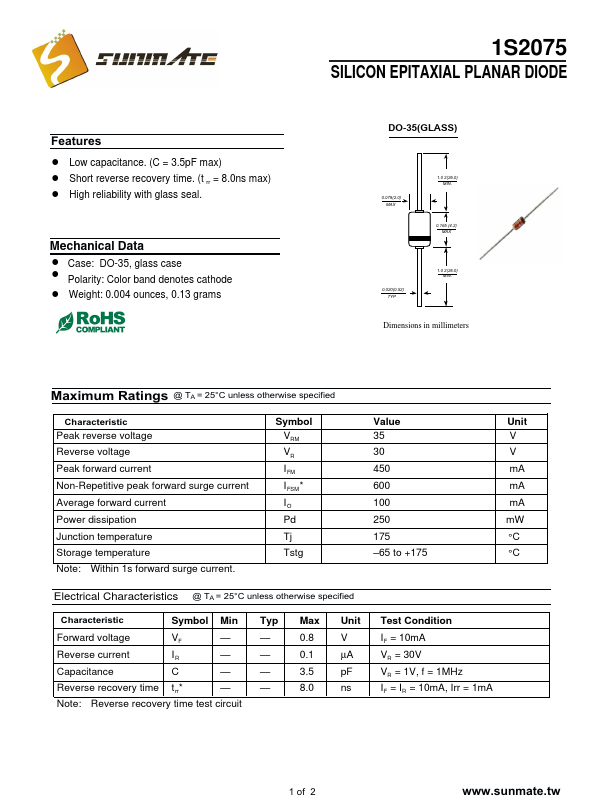

Preview of 1S2075 PDF

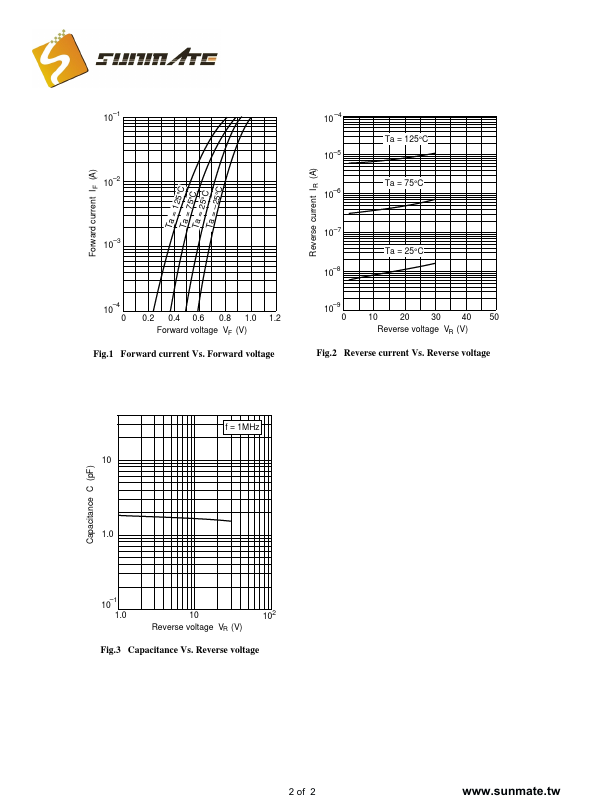

datasheet Preview Page 2

Datasheet Details

Part number
1S2075
Manufacturer
Sunmate
File Size
462.26 KB
Datasheet
1S2075-Sunmate.pdf
Description
SILICON EPITAXIAL PLANAR DIODE
