1S2076 SILICON EPITAXIAL PLANAR DIODE

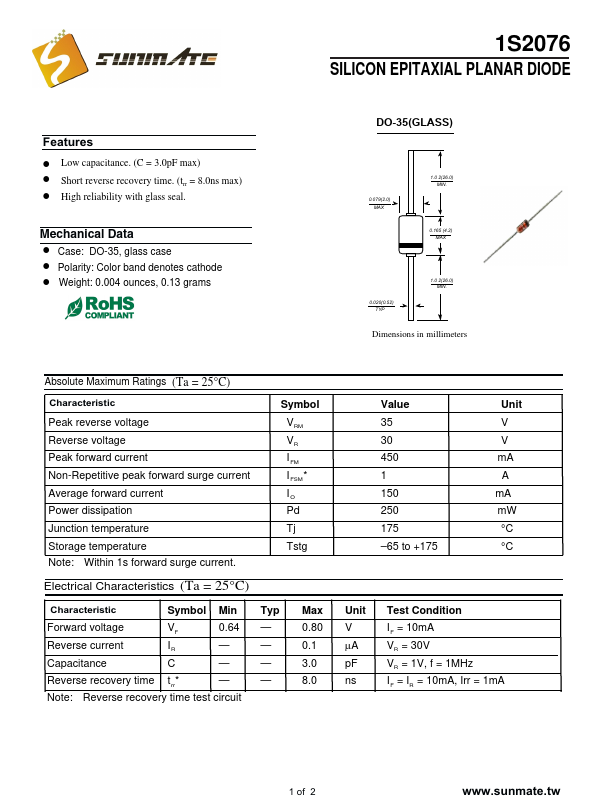

📥 Download Datasheet Datasheet Preview Page 1

Description

1S2076 SILICON EPITAXIAL PLANAR DIODE .

📥 Download Datasheet

Preview of 1S2076 PDF

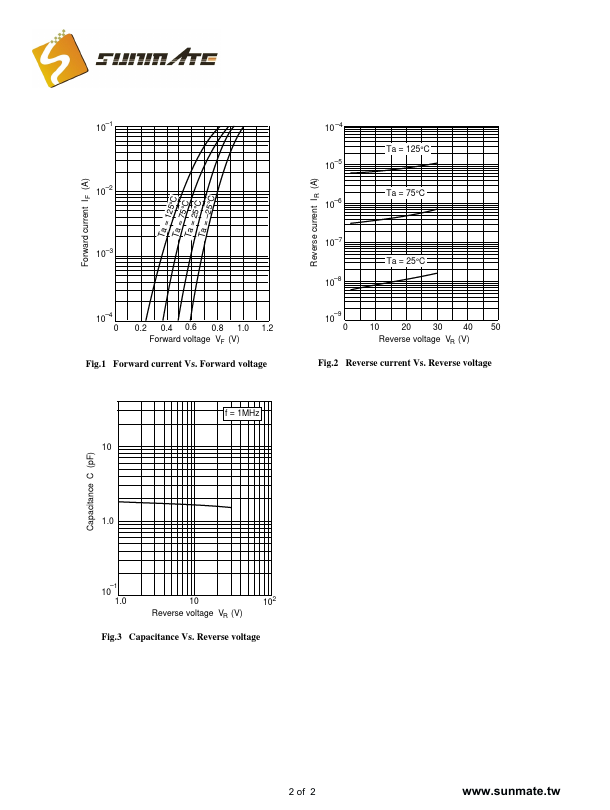

datasheet Preview Page 2

Datasheet Specifications

Part number
1S2076
Manufacturer
Sunmate
File Size
440.34 KB
Datasheet
1S2076-Sunmate.pdf
Description
SILICON EPITAXIAL PLANAR DIODE

Features

* ! Low capacitance. (C = 3.0pF max) ! Short reverse recovery time. (trr = 8.0ns max) ! High reliability with glass seal. Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX
