1SMA5957A

SURFACE MOUNT SILICON ZENER DIODES

1SMA5957A Features

* D Complete Voltage Range 3.3 to 240 Volts D High peak reverse power dissipation D High reliability D Low leakage current Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type

1SMA5957A Datasheet (603.56 KB)

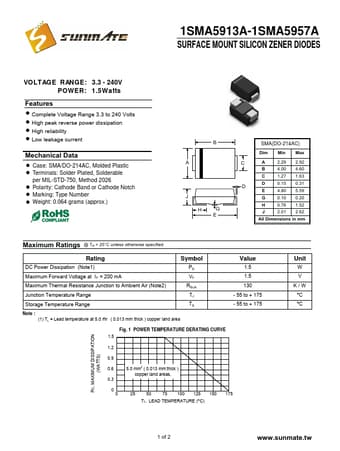

Preview of 1SMA5957A PDF

Datasheet Details

Part number:

1SMA5957A

Manufacturer:

Sunmate

File Size:

603.56 KB

Description:

Surface mount silicon zener diodes.
