1SMB160C, 1SMB5.0 SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE

1SMB160C Description

1SMB5.0A(CA) - 1SMB440A(CA) SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE VOLTAGE RANGE: 5.0 - 440 V POWER: 600Wa t t s .

1SMB160C Features

* ! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMB, Transfer Molded Epoxy ! Terminals: Solderable per MIL-STD-202, Method 208

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1SMB160C, 1SMB5.0. Please refer to the document for exact specifications by model.

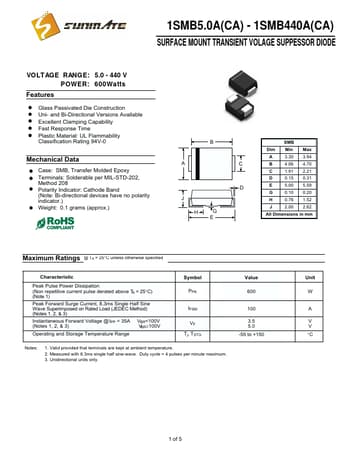

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1SMB160C, 1SMB5.0
Manufacturer
Sunmate
File Size
861.71 KB
Datasheet
1SMB5.0-Sunmate.pdf
Description
SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
Note
This datasheet PDF includes multiple part numbers: 1SMB160C, 1SMB5.0.
Please refer to the document for exact specifications by model.
