* Standard Zener Breakdown Voltage Range
* 6.8 to 200 V Stand-off Voltage Range
* 5 to 170 V Peak Power
* 600 Watts @ 1 ms Maximum Clamp Voltage @ Peak Pulse Current Low Leakage < 5 µA Above 10 V UL Recognition Response Time Typically < 1 ns Mechanical Characteristics: CASE:
1SMB16AT3 Datasheet (50.95 KB)
1SMB16AT3
Motorola Inc
50.95 KB
Plastic surface mount zener overvoltage transient suppressors.

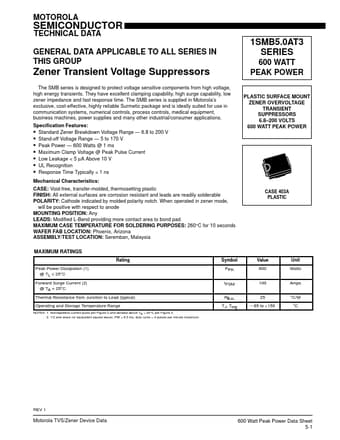

MOTOROLA SEMICONDUCTOR TECHNICAL DATA GENERAL DATA APPLICABLE TO ALL SERIES IN THIS GROUP 1SMB5.0AT3 SERIES 600 WATT PEAK POWER PLASTIC SURFACE MOUN.
