1SMB17CA - SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE

Product Overview

Sunmate

Part number	1SMB17CA
Manufacturer	Sunmate
File Size	861.71 KB
Description	SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
Datasheet	1SMB17CA Datasheet
Note	This datasheet PDF includes multiple part numbers: 1SMB17CA, 1SMB5.0. Please refer to the document for exact specifications by model.

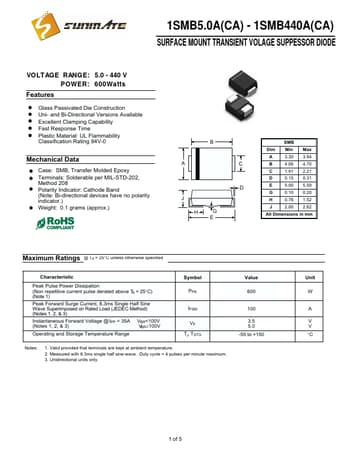

Additional preview pages of the 1SMB17CA datasheet.

! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMB, Transfer Molded Epoxy ! Terminals: Solderable per MIL-STD-202, Method 208 ! Polarity Indicator: Cathode Band (Note: Bi-directional devices have no polarity indicator. ) ! Weight: 0.1 grams (approx. ) B SMB Dim Min Max A 3.30 3.94 A C B 4.06 4.70 C 1.91 2.21 D 0.15 0.31.
