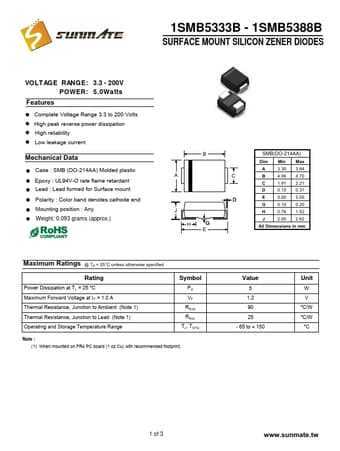

1SMB5333B - SURFACE MOUNT SILICON ZENER DIODES

Sunmate

Datasheet Details

Part number	1SMB5333B
Manufacturer	Sunmate
File Size	558.18 KB
Description	SURFACE MOUNT SILICON ZENER DIODES
Datasheet	1SMB5333B-Sunmate.pdf

! Complete Voltage Range 3.3 to 200 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case : SMB (DO-214AA) Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Lead : Lead formed for Surface mount ! Polarity : Color band denotes cathode end ! Mounting position : Any ! Weight: 0.093 grams (approx. ) B SMB(DO-214AA) Dim Min Max A 3.30 3.94 A C B 4.06 4.70 C 1.91 2.21 D 0.15 0.31 D E 5.00 5.59 G 0.10 0.20 J H 0.76 1.52 HG E J 2.00 2.62.
