1SMB5343B, 1SMB5333B-WON 5.0W SURFACE MOUNT ZENER DIODE

1SMB5343B Description

® WON-TOP ELECTRONICS .

1SMB5343B Features

* Glass Passivated Die Construction
* 5.0W Power Dissipation
* 3.3V
* 200V Nominal Zener Voltage
* 5% Standard Vz Tolerance
* Low Inductance
* For Use in Voltage Regulator or Reference
* Plastic Case Material has UL Flammability Classification Rating 94V-0 1SMB53

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1SMB5343B, 1SMB5333B-WON. Please refer to the document for exact specifications by model.

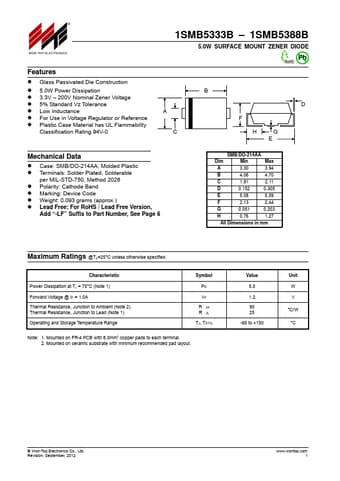

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1SMB5343B, 1SMB5333B-WON
Manufacturer
WON-TOP
File Size
92.47 KB
Datasheet
1SMB5333B-WON-TOP.pdf
Description
5.0W SURFACE MOUNT ZENER DIODE
Note
This datasheet PDF includes multiple part numbers: 1SMB5343B, 1SMB5333B-WON.
Please refer to the document for exact specifications by model.
