1SMB5377B, 1SMB5333B - SURFACE MOUNT SILICON ZENER DIODES

Name: 1SMB5377B
SKU: 1SMB5377B-1286593

Sunmate

The 1SMB5377B by Sunmate is a SURFACE MOUNT SILICON ZENER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	1SMB5377B, 1SMB5333B
Manufacturer	Sunmate
File Size	558.18 KB
Description	SURFACE MOUNT SILICON ZENER DIODES
Datasheet	1SMB5333B-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: 1SMB5377B, 1SMB5333B. Please refer to the document for exact specifications by model.

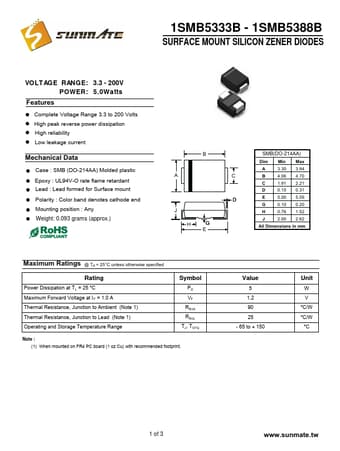

Additional preview pages of the 1SMB5377B datasheet.

! Complete Voltage Range 3.3 to 200 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case : SMB (DO-214AA) Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Lead : Lead formed for Surface mount ! Polarity : Color band denotes cathode end ! Mounting position : Any ! Weight: 0.093 grams (approx. ) B SMB(DO-214AA) Dim Min Max A 3.30 3.94 A C B 4.06 4.70 C 1.91 2.21 D 0.15 0.31 D E 5.00 5.59 G 0.10 0.20 J H 0.76 1.52 HG E J 2.00 2.62.
