1SMB5380B

SURFACE MOUNT SILICON ZENER DIODES

1SMB5380B Features

* ! Complete Voltage Range 3.3 to 200 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case : SMB (DO-214AA) Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Lead : Lead formed for Surface mount ! Polarity : Color band denotes cathode end !

1SMB5380B Datasheet (558.18 KB)

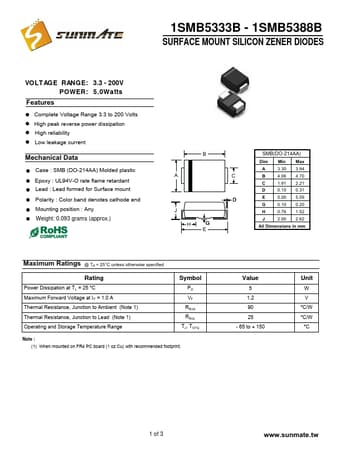

Preview of 1SMB5380B PDF

Datasheet Details

Part number:

1SMB5380B

Manufacturer:

Sunmate

File Size:

558.18 KB

Description:

Surface mount silicon zener diodes.
