BA604 - SURFACE MOUNT FAST SWITCHING DIODE

Datasheet Summary

Features

  • ! Silicon Planar Diode Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, ! Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Parameter Peak reverse voltage, non repetitive Reverse voltage Peak forward surge current Repetitive peak forward current Forward continuous current Power dissipati.

📥 Download Datasheet

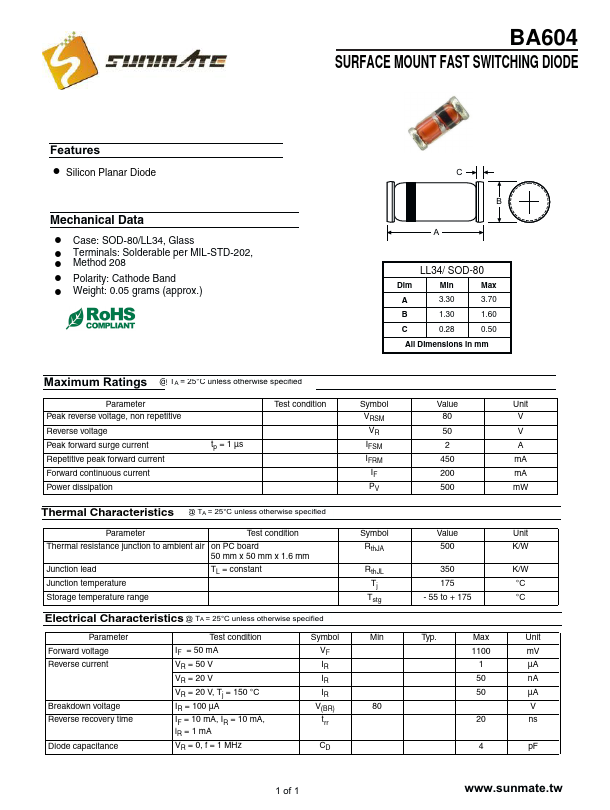

Datasheet preview – BA604

Datasheet Details

Part number BA604
Manufacturer Sunmate
File Size 773.29 KB
Description SURFACE MOUNT FAST SWITCHING DIODE
Datasheet download datasheet BA604 Datasheet
