DSR1J, DSR1A - SURFACE MOUNT RECTIFIER DIODES

Sunmate

DSR1J Description

DSR1A - DSR1M SURFACE MOUNT RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 1.0A .

DSR1J Applications

* ! Low reverse leakage ! Metallurgically bonded construction ! High temperature soldering guaranteed: ! 250 C/10 seconds,0.37”5(9.5mm) lead length, B 5 lbs. (2.3kg) tension Mechanical Data C E ! Case: JEDEC SOD-123FL molded plastic body over passivated chip ! Terminals : Plated axial leads,

📥 Download Datasheet

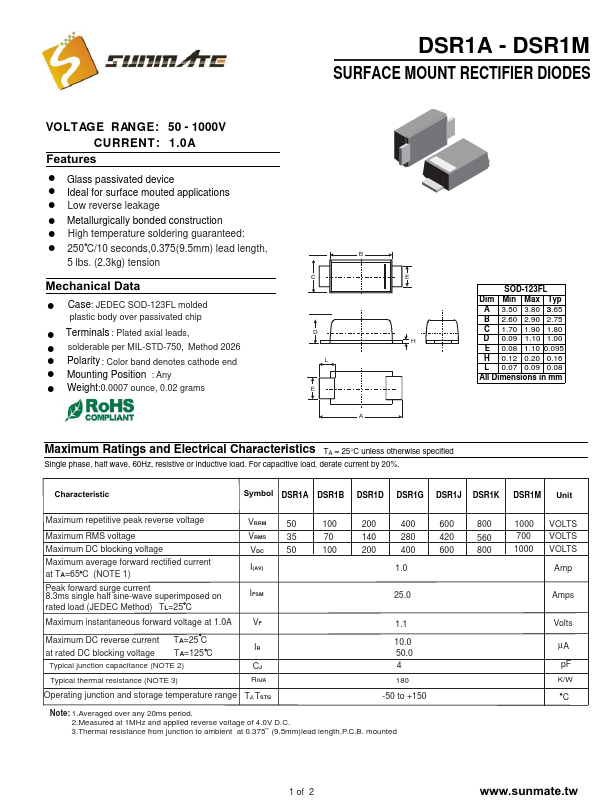

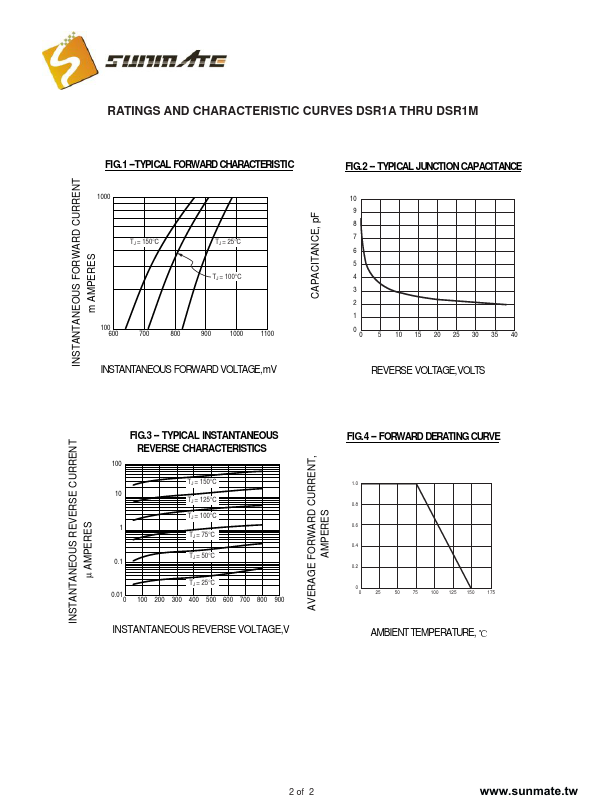

DSR1J Datasheet Preview — This datasheet PDF includes multiple part numbers: DSR1J, DSR1A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: DSR1J, DSR1A
Manufacturer: Sunmate
File Size: 143.41 KB
Datasheet: DSR1A-Sunmate.pdf
Description: SURFACE MOUNT RECTIFIER DIODES
Note: This datasheet PDF includes multiple part numbers: DSR1J, DSR1A.
Please refer to the document for exact specifications by model.
