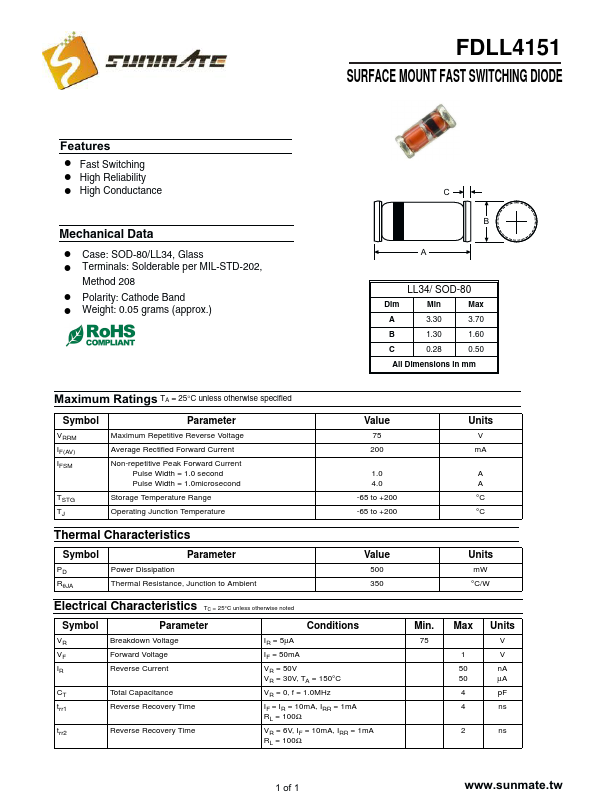

FDLL4151 - SURFACE MOUNT FAST SWITCHING DIODE

Sunmate

Datasheet Details

Part number	FDLL4151
Manufacturer	Sunmate
File Size	933.27 KB
Description	SURFACE MOUNT FAST SWITCHING DIODE
Datasheet	FDLL4151-Sunmate.pdf

! Fast Switching ! High Reliability ! High Conductance Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Maximum Ratings TA = 25°C unless otherwise specified Symbol VRRM IF(AV) IFSM TSTG TJ Parameter Maximum Repetitive Reverse Voltage Average Rectified Forward Current Non-repetitive Peak Forw.
