FDLL914 - SURFACE MOUNT FAST SWITCHING DIODE

Sunmate

Datasheet Details

Part number	FDLL914
Manufacturer	Sunmate
File Size	1.54 MB
Description	SURFACE MOUNT FAST SWITCHING DIODE
Datasheet	FDLL914-Sunmate.pdf

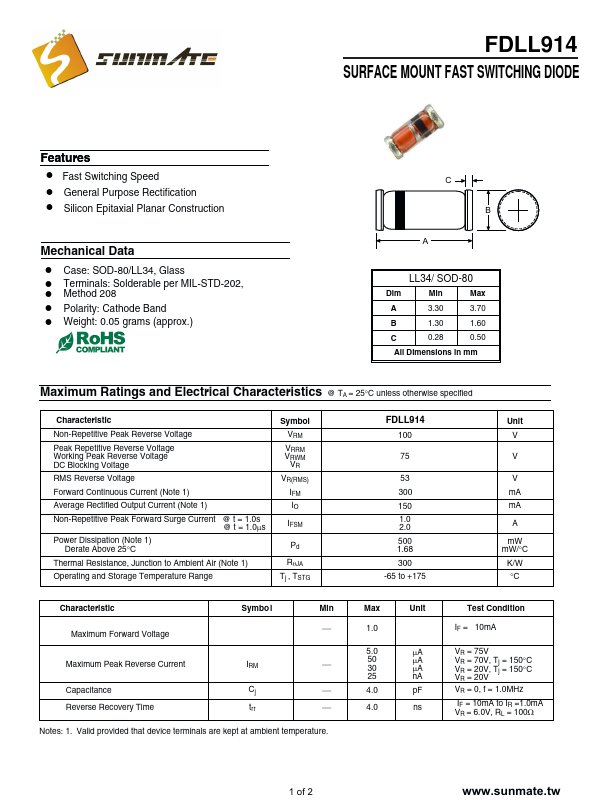

! Fast Switching Speed ! General Purpose Rectification ! Silicon Epitaxial Planar Construction Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, ! Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified Characteristic Non-Repetitive Peak Reverse Voltage Peak Repet.
