FR05-18, FR05-12 - High voltage diode

Sunmate

Datasheet Details

Part number	FR05-18, FR05-12
Manufacturer	Sunmate
File Size	129.12 KB
Description	High voltage diode
Datasheet	FR05-12-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: FR05-18, FR05-12. Please refer to the document for exact specifications by model.

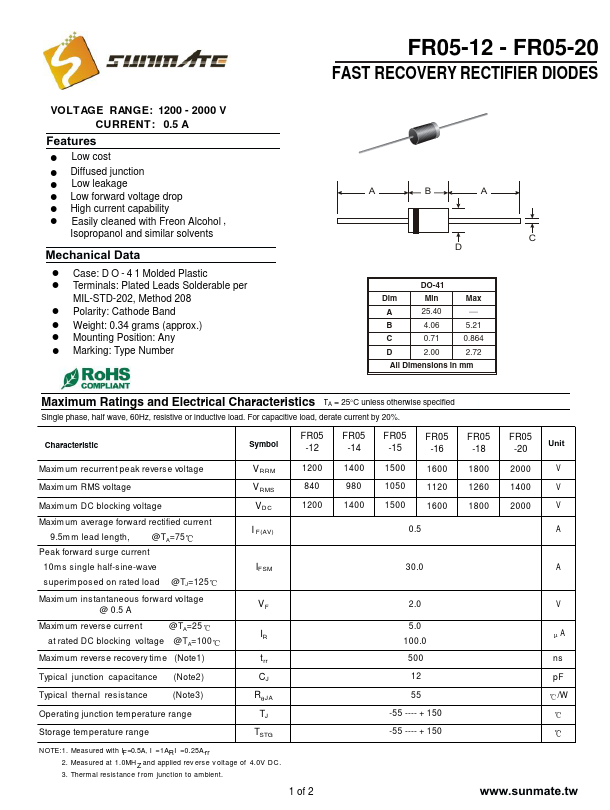

! Low cost ! Diffused junction ! Low leakage ! Low forward voltage drop ! High current capability ! Easily cleaned with Freon Alcohol , Isopropanol and similar solvents Mechanical Data ! Case: D O - 4 1 Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.34 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number A B A C D DO-41 Dim Min Max A 25.40 ¾ B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 All Dimensions in.
