FR2DL, FR2AL - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Sunmate

📥 Download Datasheet

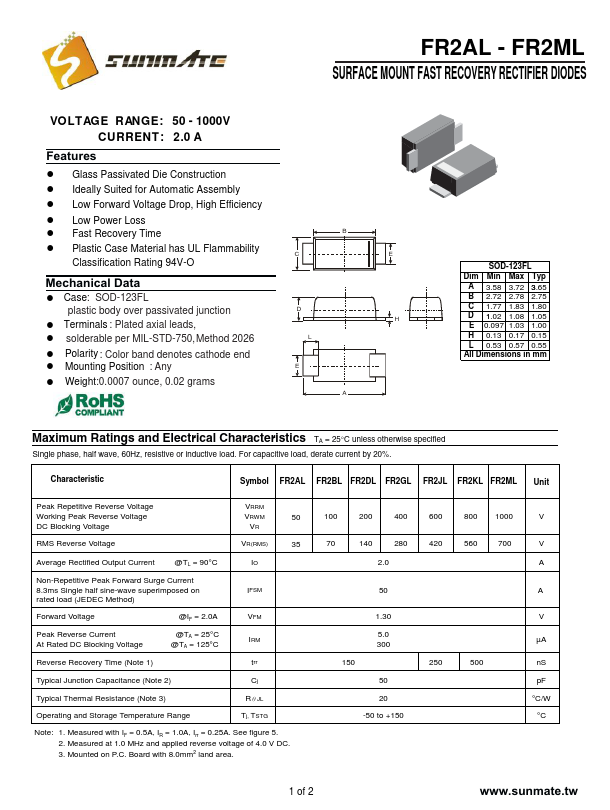

FR2DL Datasheet Preview — This datasheet PDF includes multiple part numbers: FR2DL, FR2AL. Please refer to the document for exact specifications by model.

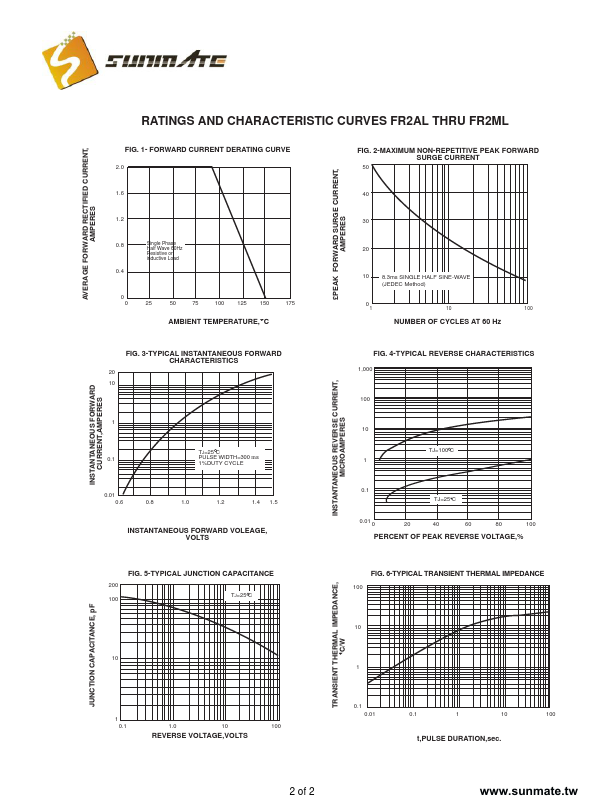

datasheet Preview Page 2

Datasheet Details

Part number	FR2DL, FR2AL
Manufacturer	Sunmate
File Size	92.83 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	FR2AL-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: FR2DL, FR2AL. Please refer to the document for exact specifications by model.

FR2DL Product details

Features

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time B ! Plastic Case Material has UL Flammability C E Classification Rating 94V-O M e c h a nica l D ata ! Case: SOD-123FL plastic body over passivated junction D ! Terminals : Plat.
