GF2A SURFACE MOUNT SINTERED GLASS PASSIVATED RECTIFIER DIODE

Sunmate

Description

GF2A - GF2M SURFACE MOUNT SINTERED GLASS PASSIVATED RECTIFIER DIODE VOLTAGE RANGE: 50 - 1000V CURRENT: 2.0 A .

📥 Download Datasheet

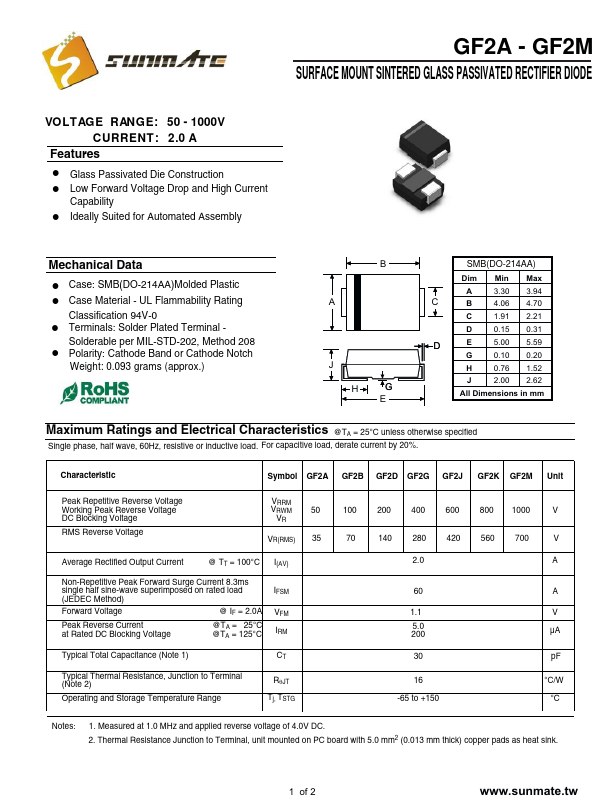

GF2A Datasheet Preview — Preview of GF2A PDF

Datasheet Specifications

Part number: GF2A
Manufacturer: Sunmate
File Size: 108.86 KB
Datasheet: GF2A-Sunmate.pdf
Description: SURFACE MOUNT SINTERED GLASS PASSIVATED RECTIFIER DIODE

Features

* ! Glass Passivated Die Construction ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automated Assembly Mechanical Data ! Case: SMB(DO-214AA)Molded Plastic ! Case Material - UL Flammability Rating Classification 94V-0 ! Terminals: Solder Plated Terminal - Solderable per M
