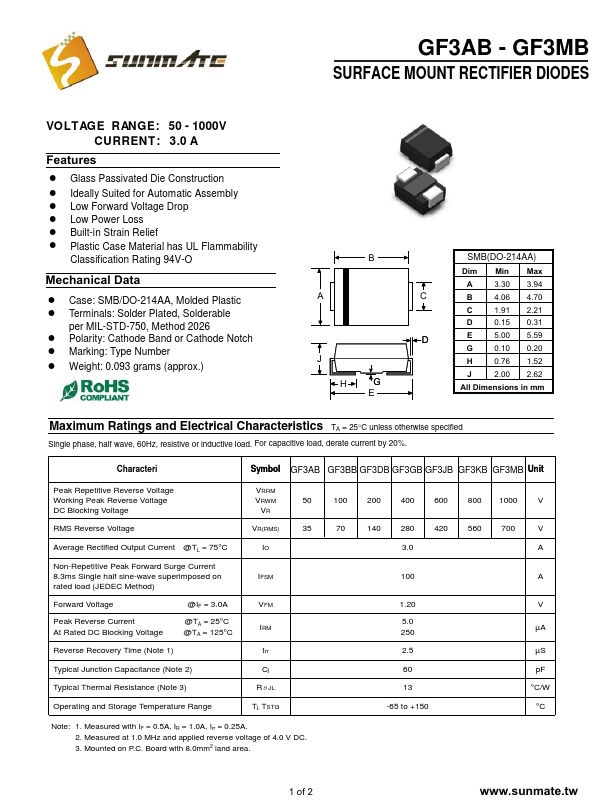

GF3BB, GF3AB - SURFACE MOUNT RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	GF3BB, GF3AB
Manufacturer	Sunmate
File Size	122.81 KB
Description	SURFACE MOUNT RECTIFIER DIODES
Datasheet	GF3AB-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: GF3BB, GF3AB. Please refer to the document for exact specifications by model.

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss ! Built-in Strain Relief ! Pla sticC ase M aterialha s U L Flam m ab ility Classification Rating 94V-O B SMB(DO-214AA) Mechanical Data Dim Min Max A 3.30 3.94 ! Case: SMB/DO-214AA, Molded Plastic ! Terminals: Solder Plated, Solderable.
