GR2A - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Sunmate

📥 Download Datasheet

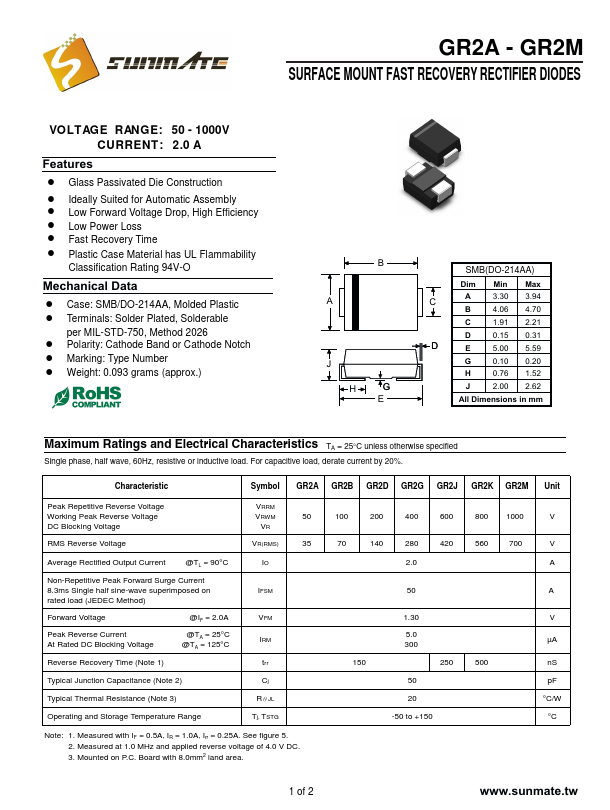

GR2A Datasheet Preview — Preview of GR2A PDF

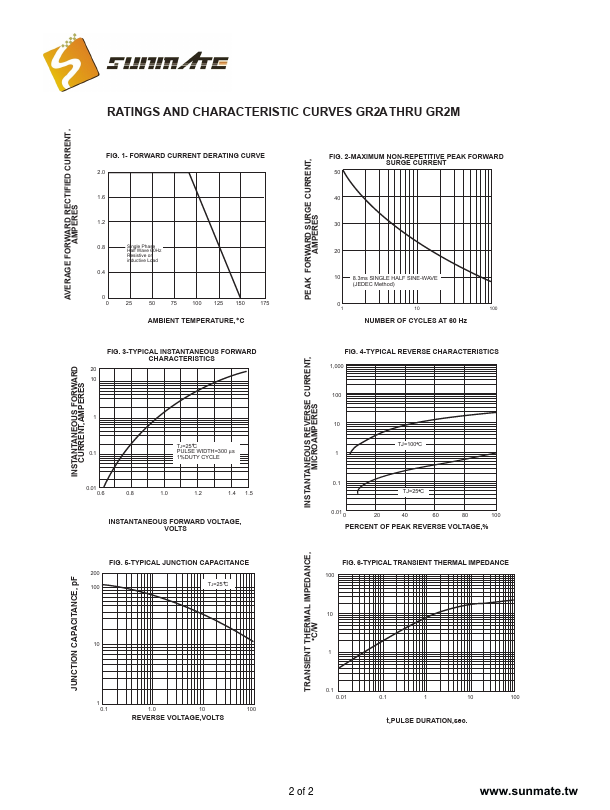

datasheet Preview Page 2

Datasheet Details

Part number	GR2A
Manufacturer	Sunmate
File Size	516.71 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	GR2A-Sunmate.pdf

GR2A Product details

Features

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time ! Plastic Case Material has UL Flammability Cla ssificatio n R a tin g 9 4 V -O B SMB(DO-214AA) Mechanical Data ! Case: SMB/DO-214AA, Molded Plastic A ! Terminals: Solder Plated, Solderable.
