GR2K

The GR2K is SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES designed by Sunmate.

Product Overview

Sunmate

📥 Download Datasheet

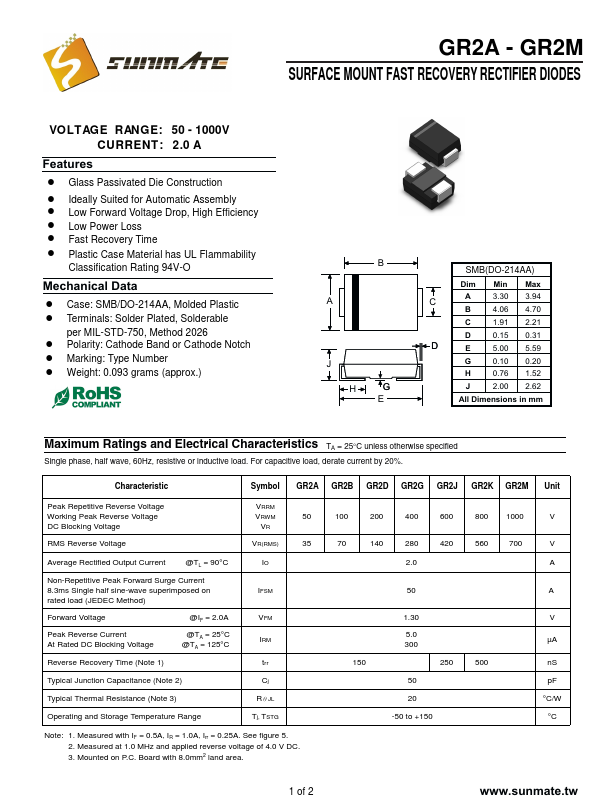

GR2K SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES by Sunmate - Datasheet Preview — Datasheet preview – GR2K

Datasheet Details

Part number	GR2K, GR2A
Manufacturer	Sunmate
File Size	516.71 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	GR2A-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: GR2K, GR2A. Please refer to the document for exact specifications by model.

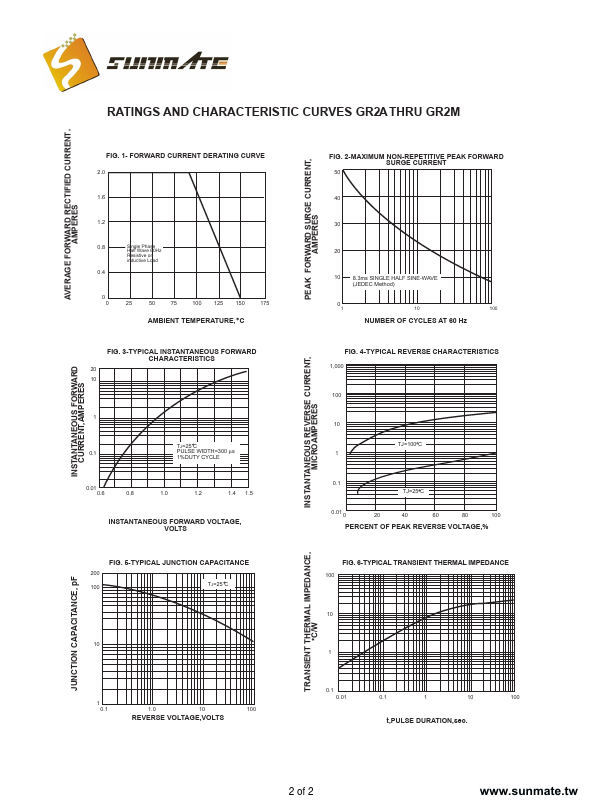

Additional preview pages of the GR2K datasheet.

Product details

Features

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time ! Plastic Case Material has UL Flammability Cla ssificatio n R a tin g 9 4 V -O B SMB(DO-214AA) Mechanical Data ! Case: SMB/DO-214AA, Molded Plastic A ! Terminals: Solder Plated, Solderable.
