GS1A - SURFACE MOUNT RECTIFIER DIODES

Product Overview

Sunmate

📥 Download Datasheet

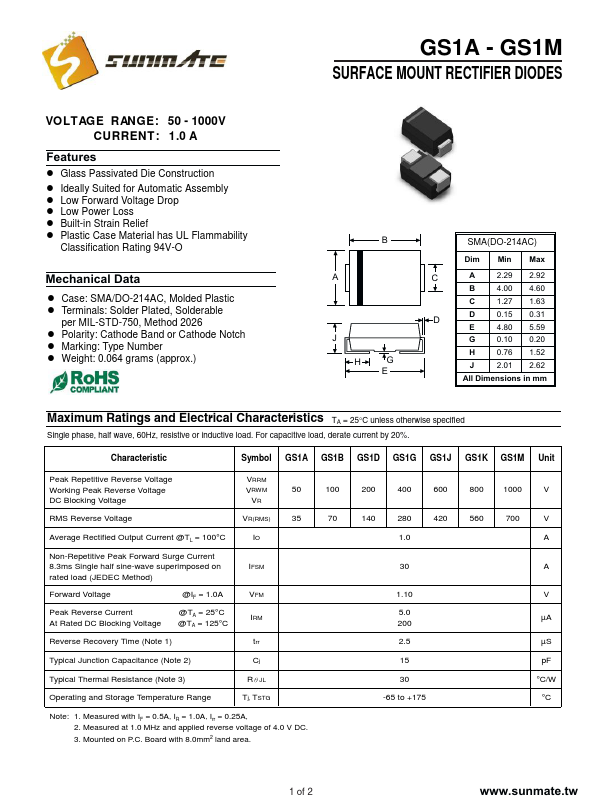

GS1A SURFACE MOUNT RECTIFIER DIODES by Sunmate - Datasheet Preview — Datasheet preview – GS1A

Datasheet Details

Part number	GS1A
Manufacturer	Sunmate
File Size	115.99 KB
Description	SURFACE MOUNT RECTIFIER DIODES
Datasheet	GS1A Datasheet

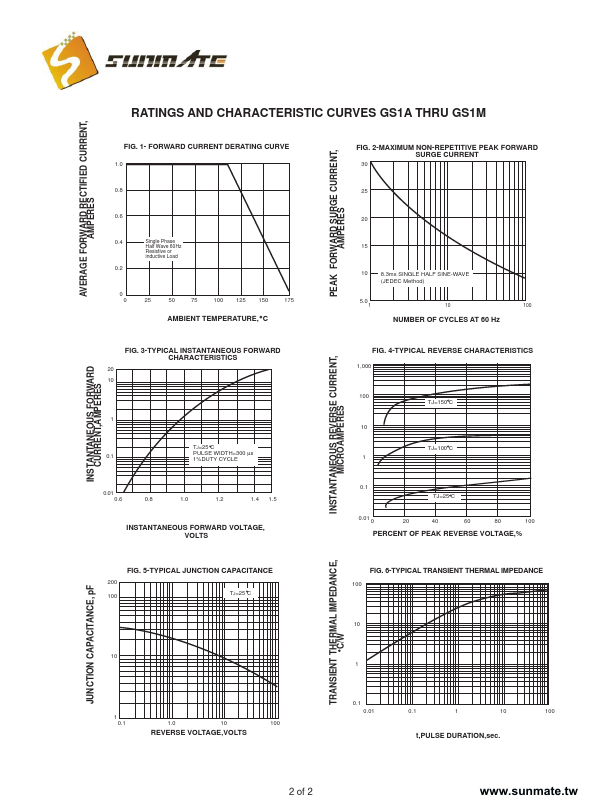

Additional preview pages of the GS1A datasheet.

Product details

Features

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss ! Built-in Strain Relief ! Plastic Case Material has UL C lassification Rating 94V -O Flammability B SM A (DO-214AC) Dim Min Max Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Sold.
