GS1M, GS1A SURFACE MOUNT RECTIFIER DIODES

GS1M Description

GS1A - GS1M SURFACE MOUNT RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 1.0 A .

GS1M Features

* ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss ! Built-in Strain Relief ! Plastic Case Material has UL C lassification Rating 94V -O   Flammability

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS1M, GS1A. Please refer to the document for exact specifications by model.

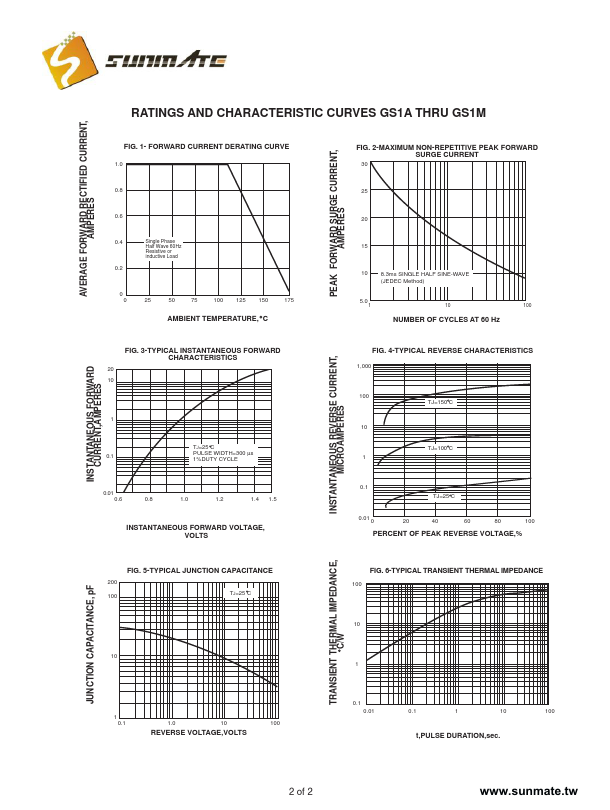

datasheet Preview Page 2

Datasheet Details

Part number
GS1M, GS1A
Manufacturer
Sunmate
File Size
115.99 KB
Datasheet
GS1A-Sunmate.pdf
Description
SURFACE MOUNT RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: GS1M, GS1A.
Please refer to the document for exact specifications by model.
