GS1MB, GS1AB Surface Mount General Purpose Rectifier

GS1MB Description

GS1AB THRU GS1MB Surface Mount General Purpose Rectifier RoHS COMPLIANT .

GS1MB Features

* Low profile package
* Ideal for automated placement
* Glass passivated chip junction
* High forward surge capability

GS1MB Applications

* For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer and telecommunication. Mechanical Data
* Package: DO-214AA (SMB) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
* Terminals: Tin plated

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS1MB, GS1AB. Please refer to the document for exact specifications by model.

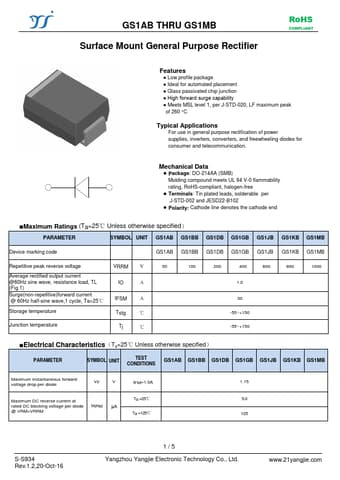

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS1MB, GS1AB
Manufacturer
Yangzhou Yangjie
File Size
402.87 KB
Datasheet
GS1AB-YangzhouYangjie.pdf
Description
Surface Mount General Purpose Rectifier
Note
This datasheet PDF includes multiple part numbers: GS1MB, GS1AB.
Please refer to the document for exact specifications by model.
