HVP-14 - HIGH VOLTAGE DIODES

HVP-14 Description

VOLTAGE RANGE: 14KV CURRENT: 7 50m A .

HVP-14 Applications

* X light Power supply Laser Voltage doubler circuit Microwave emission power HVP-14 HIGH VOLTAGE DIODES Outline Drawings : mm 19.0 19.0 38.5 76.2 42.0 0.8X6.3 6.5 7.5 4.0 8.0 Maximum Ratings TA = 25°C unless otherwise specified Characteristic Symbols Repetitive Peak Renerse Voltage Average

📥 Download Datasheet

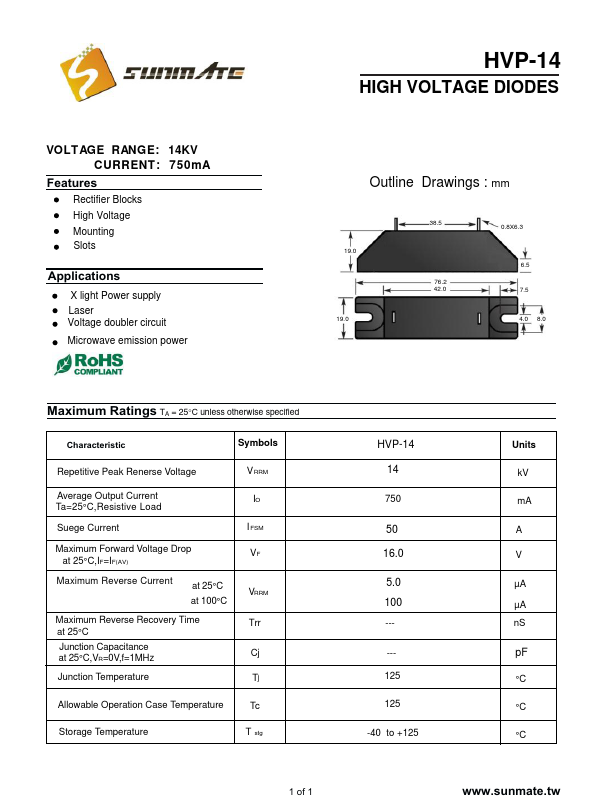

Preview of HVP-14 PDF

Datasheet Details

Part number
HVP-14
Manufacturer
Sunmate
File Size
83.99 KB
Datasheet
HVP-14-Sunmate.pdf
Description
HIGH VOLTAGE DIODES
