HVP-8 - High voltage diode

HVP-8 Description

VOLTAGE RANGE: 8 KV CURRENT: 7 50m A .

HVP-8 Applications

* X light Power supply Laser Voltage doubler circuit Microwave emission power HVP-8 HIGH VOLTAGE DIODES Outline Drawings : mm 19.0 19.0 38.5 76.2 42.0 0.8X6.3 6.5 7.5 4.0 8.0 Maximum Ratings TA = 25°C unless otherwise specified Characteristic Symbols Repetitive Peak Renerse Voltage Average O

📥 Download Datasheet

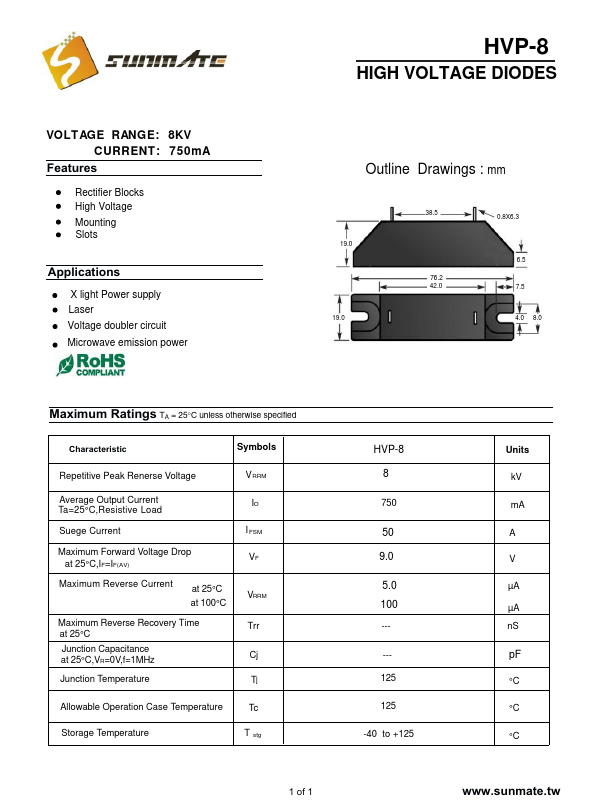

Preview of HVP-8 PDF

Datasheet Details

Part number
HVP-8
Manufacturer
Sunmate
File Size
84.26 KB
Datasheet
HVP-8-Sunmate.pdf
Description
High voltage diode
