LS4448 - FAST SWITCHING DIODES

Sunmate

📥 Download Datasheet

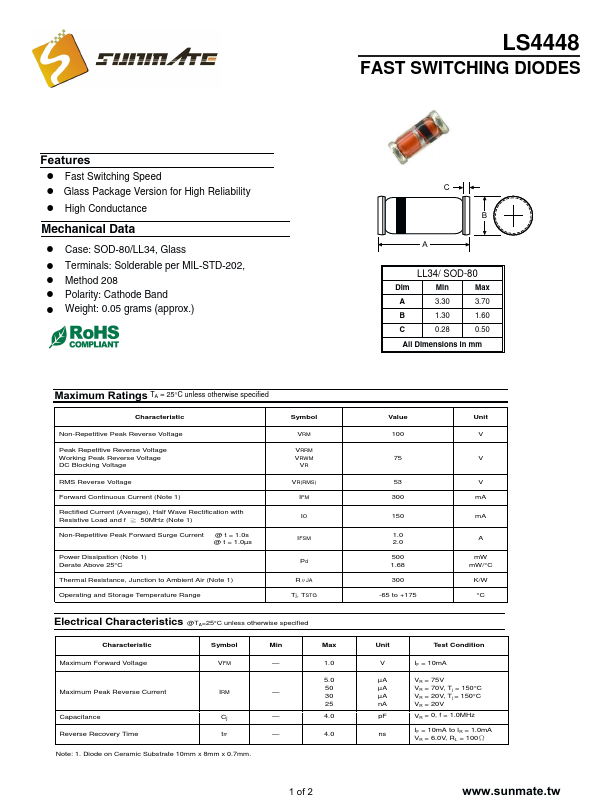

LS4448 Datasheet Preview — Preview of LS4448 PDF

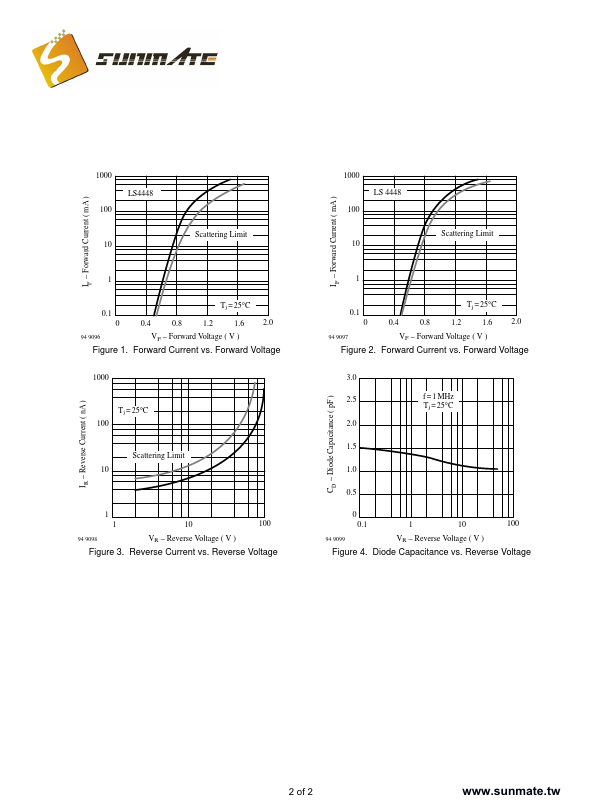

datasheet Preview Page 2

Datasheet Details

Part number	LS4448
Manufacturer	Sunmate
File Size	629.51 KB
Description	FAST SWITCHING DIODES
Datasheet	LS4448-Sunmate.pdf

LS4448 Product details

Features

! Fast Switching Speed ! Glass Package Version for High Reliability ! H ig h C onductance Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, ! Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Maximum Ratings TA = 25°C unless oth.
