MBRX120 - SURFACE MOUNT SCHOTTKY BARRIER DIODES

Name: MBRX120
SKU: MBRX120-1237273

Sunmate

The MBRX120 by Sunmate is a SURFACE MOUNT SCHOTTKY BARRIER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	MBRX120
Manufacturer	Sunmate
File Size	474.71 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER DIODES
Datasheet	MBRX120-Sunmate.pdf

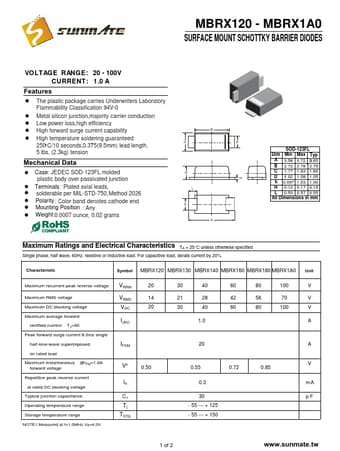

Additional preview pages of the MBRX120 datasheet.

! The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 ! Metal silicon junction,majority carrier conduction ! Low power loss,high efficiency ! High forward surge current capability ! High temperature soldering guaranteed: 250 C/10 seconds,0.37”5(9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data ! Case: JEDEC SOD-123FL molded plastic body over passivated junction ! Terminals : Plated axial leads, ! solderable per MIL-STD-750,Method 2026 ! Polarity : Color.
