MBRX130, MBRX120 - SURFACE MOUNT SCHOTTKY BARRIER DIODES

Name: MBRX130
SKU: MBRX130-1237274

Sunmate

The MBRX130 by Sunmate is a SURFACE MOUNT SCHOTTKY BARRIER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	MBRX130, MBRX120
Manufacturer	Sunmate
File Size	474.71 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER DIODES
Datasheet	MBRX120-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: MBRX130, MBRX120. Please refer to the document for exact specifications by model.

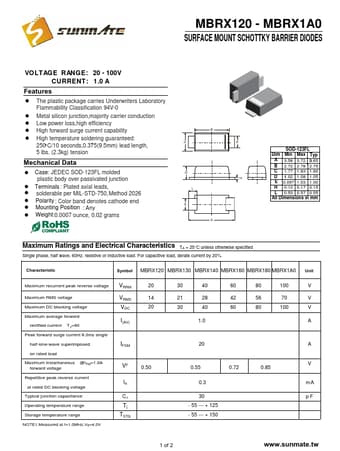

Additional preview pages of the MBRX130 datasheet.

! The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 ! Metal silicon junction,majority carrier conduction ! Low power loss,high efficiency ! High forward surge current capability ! High temperature soldering guaranteed: 250 C/10 seconds,0.37”5(9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data ! Case: JEDEC SOD-123FL molded plastic body over passivated junction ! Terminals : Plated axial leads, ! solderable per MIL-STD-750,Method 2026 ! Polarity : Color.
