MCL101B, MCL101A - SMALL SIGNAL SCHOTTKY BARRIER DIODES

Sunmate

Datasheet Details

Part number: MCL101B, MCL101A
Manufacturer: Sunmate
File Size: 495.10 KB
Datasheet: MCL101A-Sunmate.pdf
Description: SMALL SIGNAL SCHOTTKY BARRIER DIODES
Note: This datasheet PDF includes multiple part numbers: MCL101B, MCL101A.
Please refer to the document for exact specifications by model.

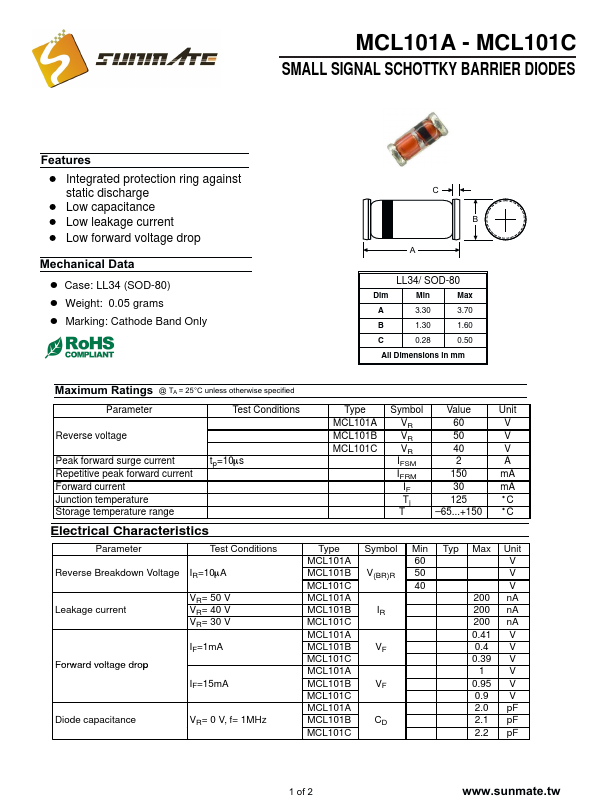

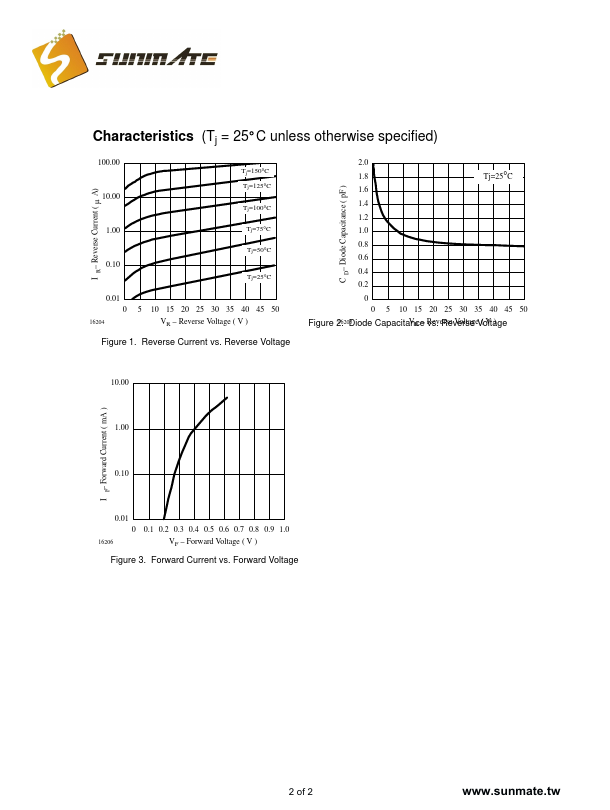

D Integrated protection ring against static discharge D Low capacitance D Low leakage current D Low forward voltage drop Mechanical Data ! Case: LL34 (SOD-80) ! Weight: 0.05 grams ! Marking: Cathode Band Only C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Parameter Test Conditions Reverse voltage Peak forward surge current Repetitive peak forward current Forward current Junction.
