MRA4001 - SURFACE MOUNT SILICON RECTIFIER DIODES

MRA4001 Description

MRA4001 - MRA4007 SURFACE MOUNT SILICON RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 1.0 A .

MRA4001 Applications

* ! Low reverse leakage current ! Low forward voltage drop ! High current capability ! Plastic material has UL flammability classification 94V-0 Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode

📥 Download Datasheet

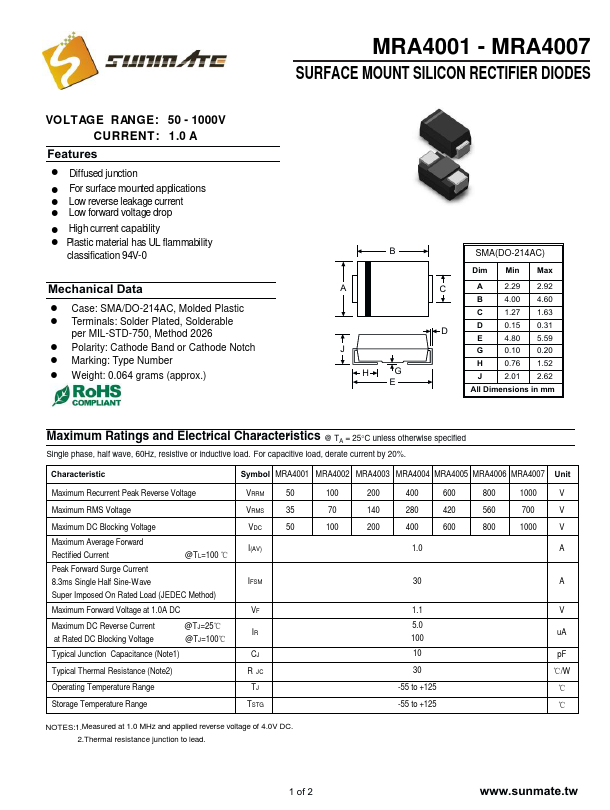

Preview of MRA4001 PDF

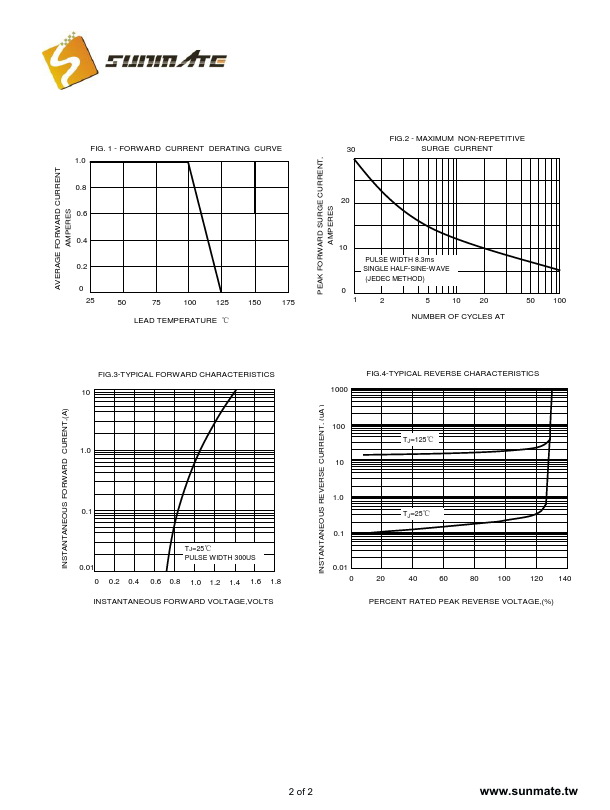

datasheet Preview Page 2

Datasheet Details

Part number
MRA4001
Manufacturer
Sunmate
File Size
178.25 KB
Datasheet
MRA4001-Sunmate.pdf
Description
SURFACE MOUNT SILICON RECTIFIER DIODES
