P300D, P300A - AXIAL LEADED RECTIFIER DIODES

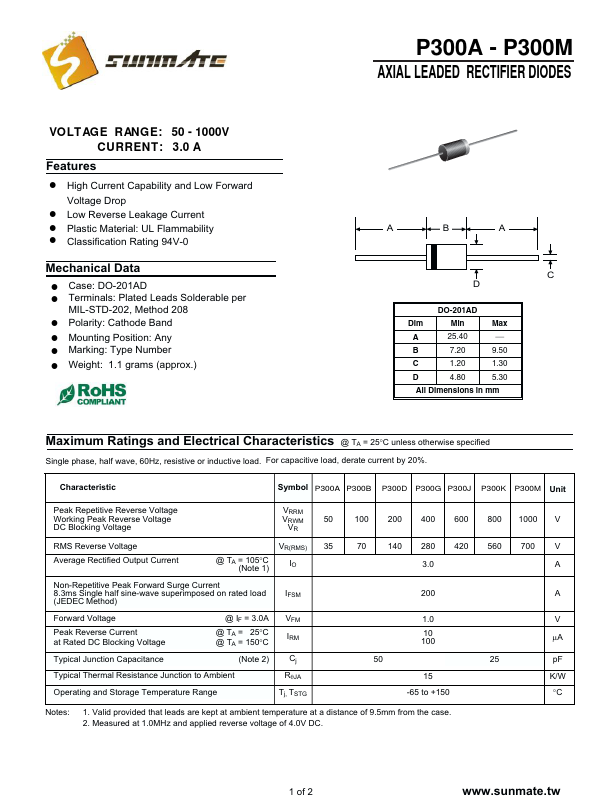

P300D Description

P300A - P300M AXIAL LEADED RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 3.0 A .

P300D Features

* ! High Current Capability and Low Forward Voltage Drop ! Low Reverse Leakage Current ! Plastic Material: UL Flammability ! Classification Rating 94V-0 Mechanical Data ! Case: DO-201AD ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Mounting Position: Any !

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: P300D, P300A. Please refer to the document for exact specifications by model.

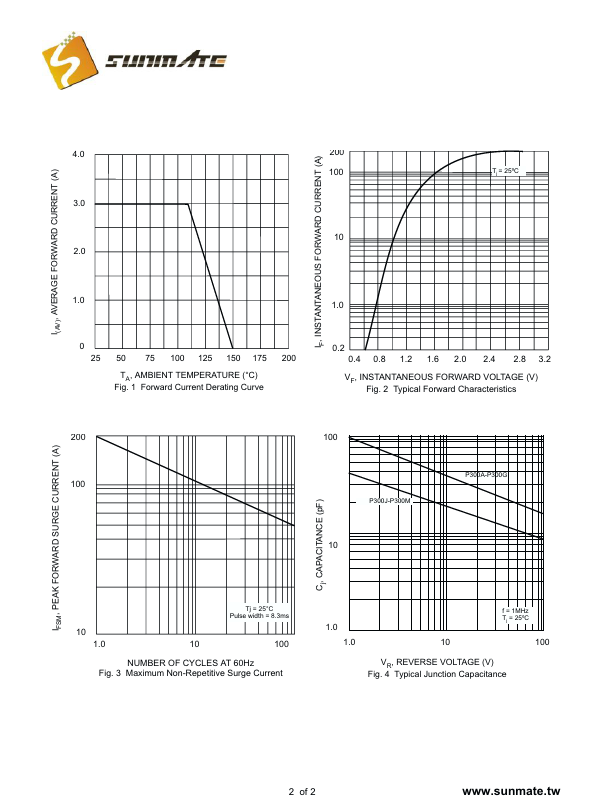

datasheet Preview Page 2

Datasheet Details

Part number
P300D, P300A
Manufacturer
Sunmate
File Size
123.20 KB
Datasheet
P300A-Sunmate.pdf
Description
AXIAL LEADED RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: P300D, P300A.
Please refer to the document for exact specifications by model.
