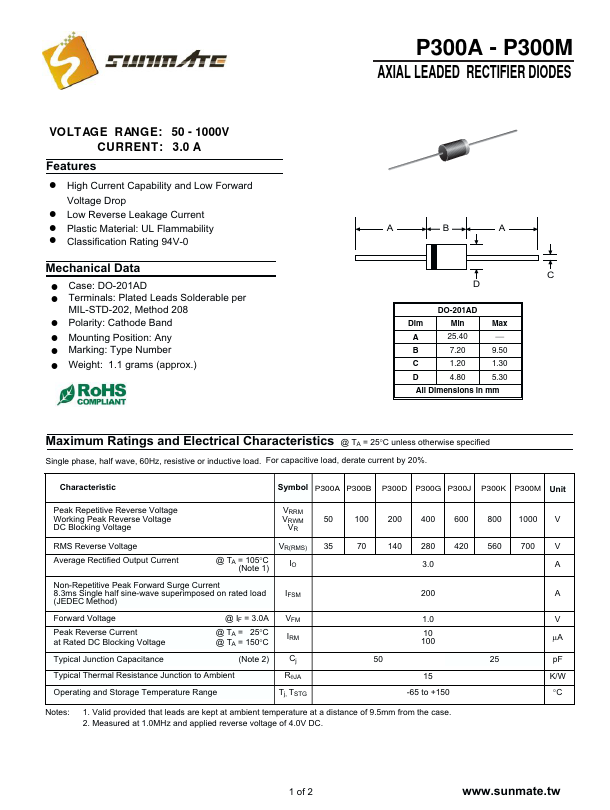

P300M, P300A - AXIAL LEADED RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	P300M, P300A
Manufacturer	Sunmate
File Size	123.20 KB
Description	AXIAL LEADED RECTIFIER DIODES
Datasheet	P300A-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: P300M, P300A. Please refer to the document for exact specifications by model.

! High Current Capability and Low Forward Voltage Drop ! Low Reverse Leakage Current ! Plastic Material: UL Flammability ! Classification Rating 94V-0 Mechanical Data ! Case: DO-201AD ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Mounting Position: Any ! Marking: Type Number ! Weight: 1.1 grams (approx. ) A B A C D DO-201AD Dim Min Max A 25.40 ¾ B 7.20 9.50 C 1.20 1.30 D 4.80 5.30 All Dimensions in mm Maximum Ratings and Electric.
