PR3004, PR3001 - FAST RECOVERY RECTIFIER DIODES

PR3004 Description

PR3001 - PR3007 FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 3.0 A .

PR3004 Features

* ! Glass Passivated Die Construction ! Diffused Junction ! Fast Switching for High Efficiency ! High Current Capability and Low Forward Voltage Drop ! Low Reverse Leakage Current ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case:DO-201AD, Molded Plastic ! Terminal

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PR3004, PR3001. Please refer to the document for exact specifications by model.

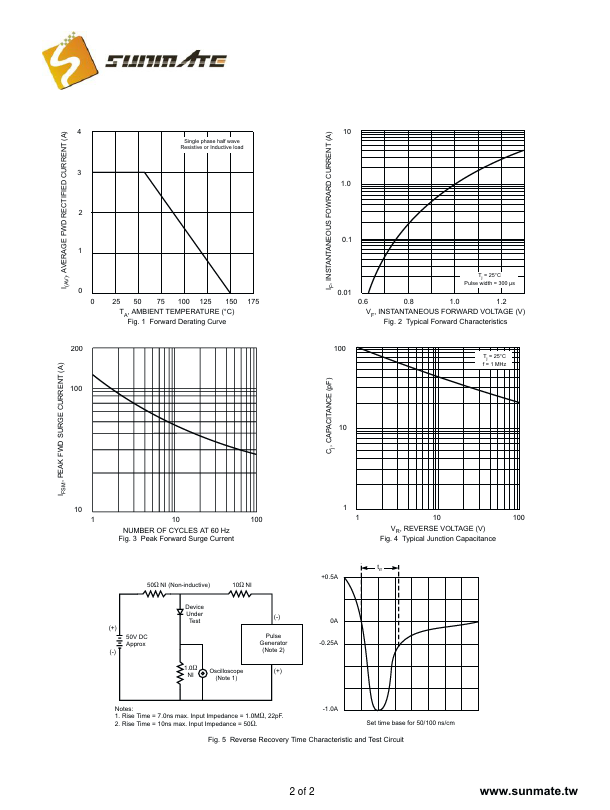

datasheet Preview Page 2

Datasheet Details

Part number
PR3004, PR3001
Manufacturer
Sunmate
File Size
94.36 KB
Datasheet
PR3001-Sunmate.pdf
Description
FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: PR3004, PR3001.
Please refer to the document for exact specifications by model.
