R2000 - High voltage diode

Sunmate

Datasheet Details

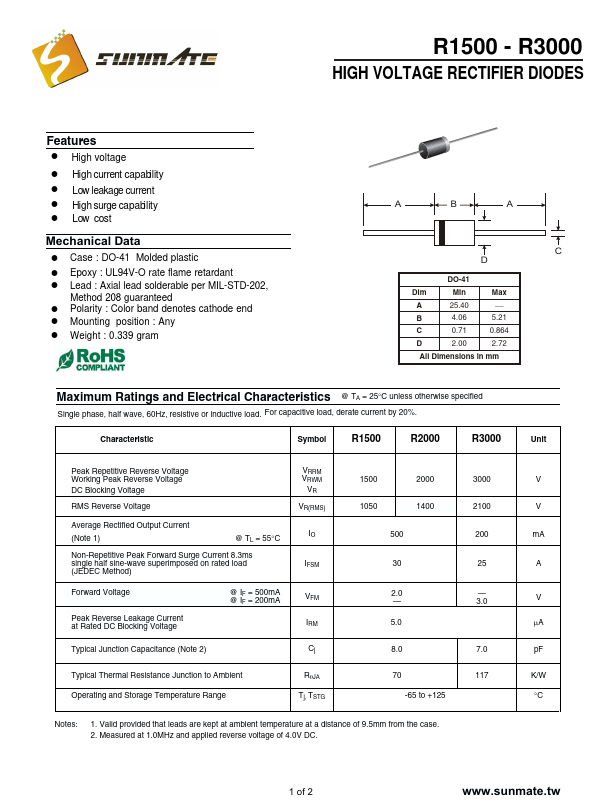

! High voltage ! High current capability ! Low leakage current ! High surge capability ! Low cost Mechanical Data ! Case : DO-41 Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed ! Polarity : Color band denotes cathode end ! Mounting position : Any ! Weight : 0.339 gram A B A C D DO-41 Dim Min Max A 25.40 ¾ B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 All Dimensions in mm Maximum Ratings and Electrical Charac.
