RH2000A High voltage diode

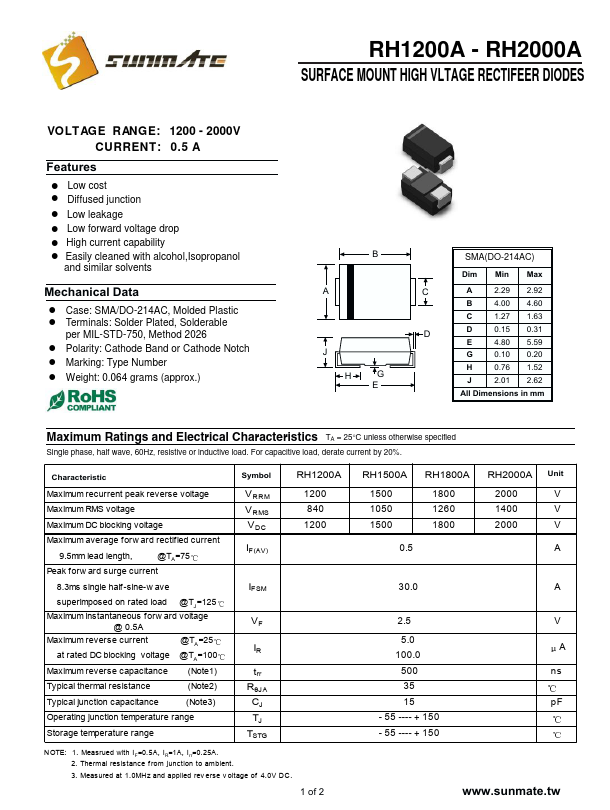

📥 Download Datasheet  Datasheet Preview Page 1

Description

RH1200A - RH2000A SURFACE MOUNT HIGH VLTAGE RECTIFEER DIODES VOLTAGE RANGE: 1200 - 2000V CURRENT: 0.5 A .

📥 Download Datasheet

Preview of RH2000A PDF

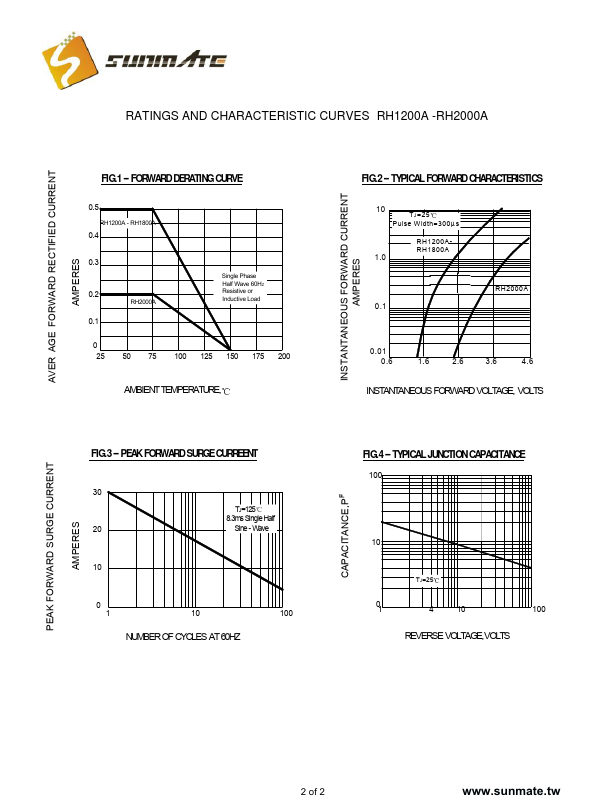

datasheet Preview Page 2

Datasheet Specifications

Part number
RH2000A
Manufacturer
Sunmate
File Size
188.73 KB
Datasheet
RH2000A-Sunmate.pdf
Description
High voltage diode

Features

* ! Low cost ! Diffused junction ! Low leakage ! Low forward voltage drop ! High current capability ! Easily cleaned with alcohol,Isopropanol and similar solvents Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathod
