RH20JEN182, RH20JEN182-TA Datasheet - TA-I

RH20JEN182 Thick Film High Voltage Chip Resistors

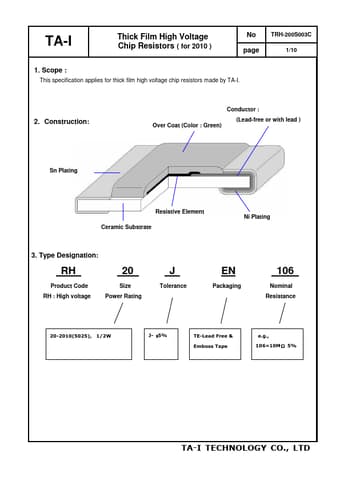

TA-I Thick Film High Voltage Chip Resistors ( for 2010 ) No page TRH-200S003C 1/10 1. Scope : This specification applies for thick film high voltage chip resistors made by TA-I. 2. Construction: Conductor : Over Coat (Color : Green) (Lead-free or with lead ) Sn Plating Resistive Element Ceramic Substrate Ni Plating 3. Type Designation: RH 20 Product Code RH : High voltage Size Power Rating J Tolerance EN Packaging 106 Nominal Resistance 20-2010(5025), 1/2W ± J- 5% TE-Lead F.

RH20JEN182-TA-I.pdf

This datasheet PDF includes multiple part numbers: RH20JEN182, RH20JEN182-TA. Please refer to the document for exact specifications by model.
RH20JEN182 Datasheet Preview Page 2 RH20JEN182 Datasheet Preview Page 3

Datasheet Details

Part number:

RH20JEN182, RH20JEN182-TA

Manufacturer:

TA-I

File Size:

318.00 KB

Description:

Thick film high voltage chip resistors.

Note:

This datasheet PDF includes multiple part numbers: RH20JEN182, RH20JEN182-TA.
Please refer to the document for exact specifications by model.
