RH5000A - High voltage diode

RH5000A Description

RH2500A - RH5000A SURFACE MOUNT FAST RECOVER HIGH VOLTAGE DIODES VOLTAGE RANGE: 2500 - 5000 V CURRENT: 0.2 A .

RH5000A Features

* ! Low cost ! Low leakage ! Low forward voltage drop ! High current capability ! Easily cleaned with alcohol,Isopropanol and similar solvents Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode No

📥 Download Datasheet

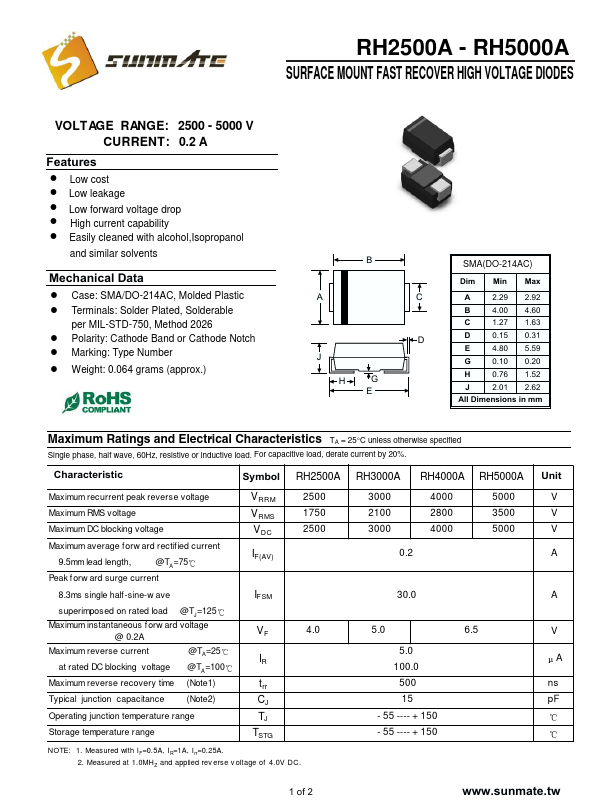

Preview of RH5000A PDF

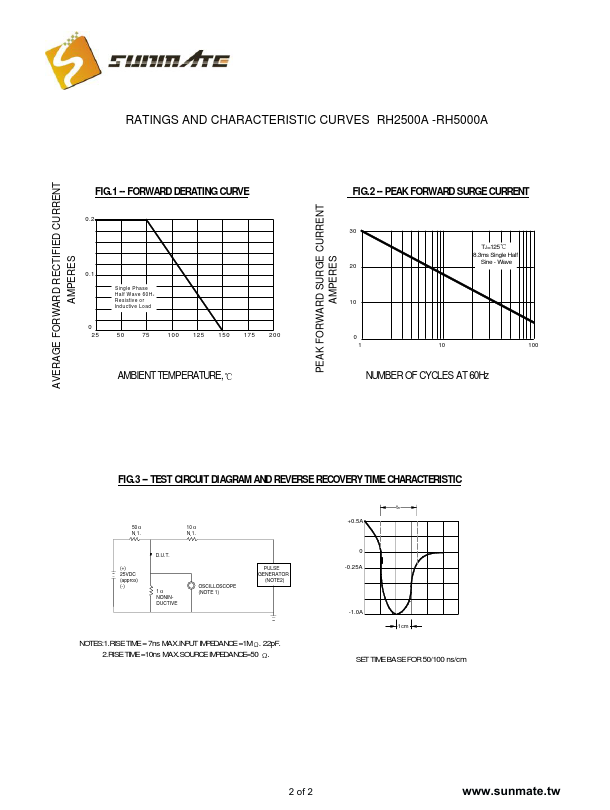

datasheet Preview Page 2

Datasheet Details

Part number
RH5000A
Manufacturer
Sunmate
File Size
116.40 KB
Datasheet
RH5000A-Sunmate.pdf
Description
High voltage diode
