RS2DB, RS2AB - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Sunmate

📥 Download Datasheet

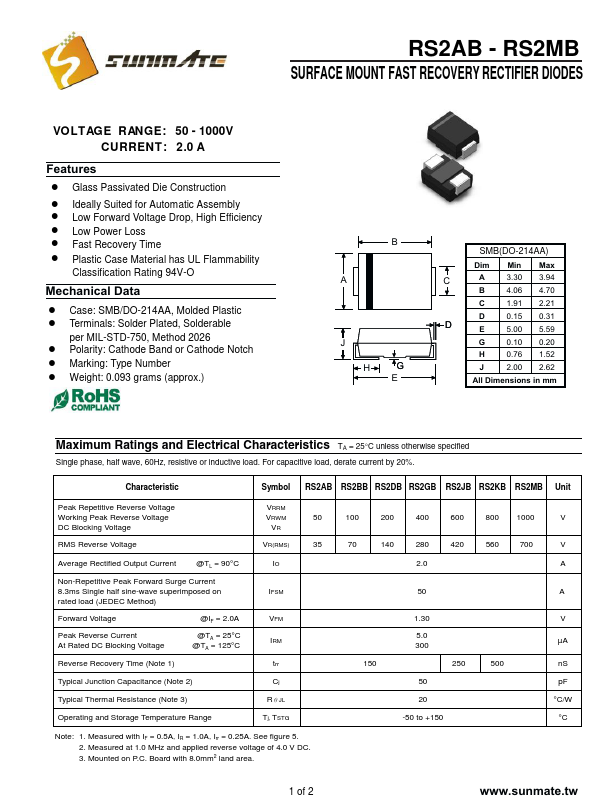

RS2DB Datasheet Preview — This datasheet PDF includes multiple part numbers: RS2DB, RS2AB. Please refer to the document for exact specifications by model.

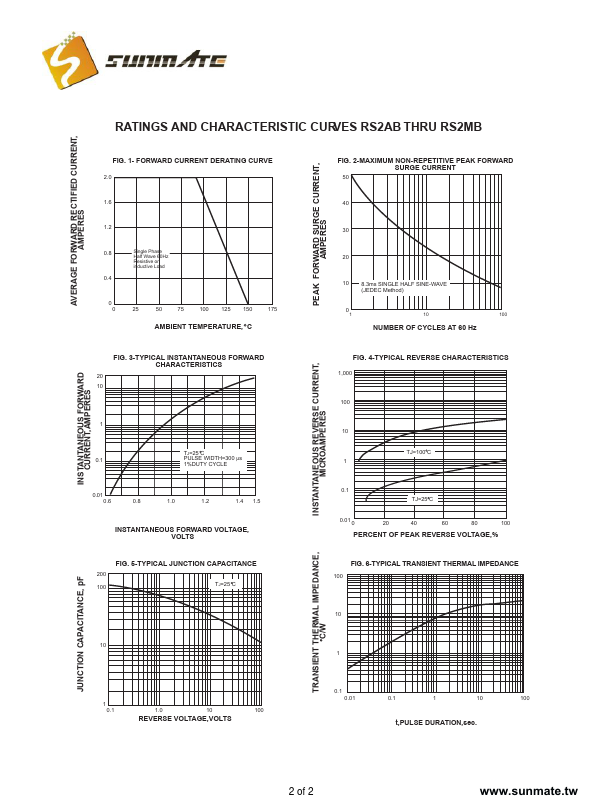

datasheet Preview Page 2

Datasheet Details

Part number	RS2DB, RS2AB
Manufacturer	Sunmate
File Size	243.72 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	RS2AB-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: RS2DB, RS2AB. Please refer to the document for exact specifications by model.

RS2DB Product details

Features

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time B ! Plastic Case Material has UL Flammability C la s s ification R a tin g 9 4 V -O A C Mechanical Data ! Case: SMB/DO-214AA, Molded Plastic ! Terminals: Solder Plated, Solderable per M.
