RS201 - SILICON BRIDGE RECTIFIERS

Sunmate

📥 Download Datasheet

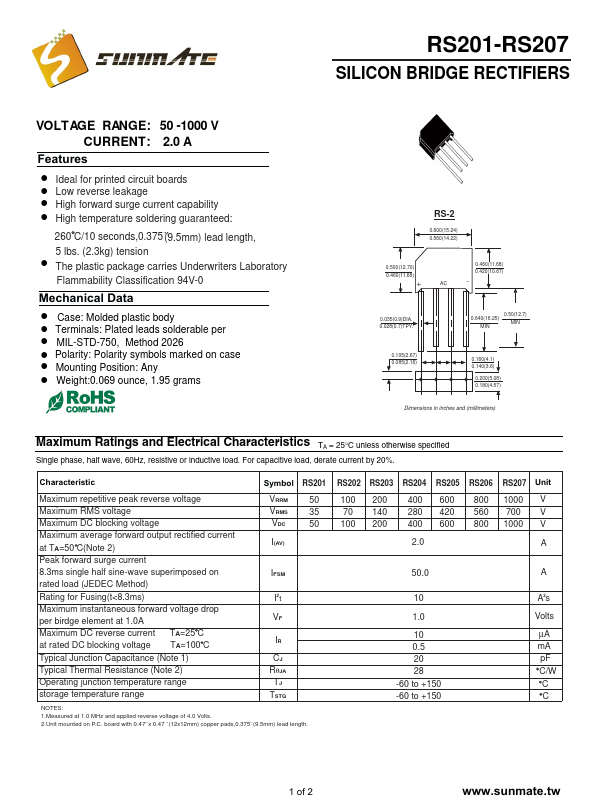

RS201 Datasheet Preview — Preview of RS201 PDF

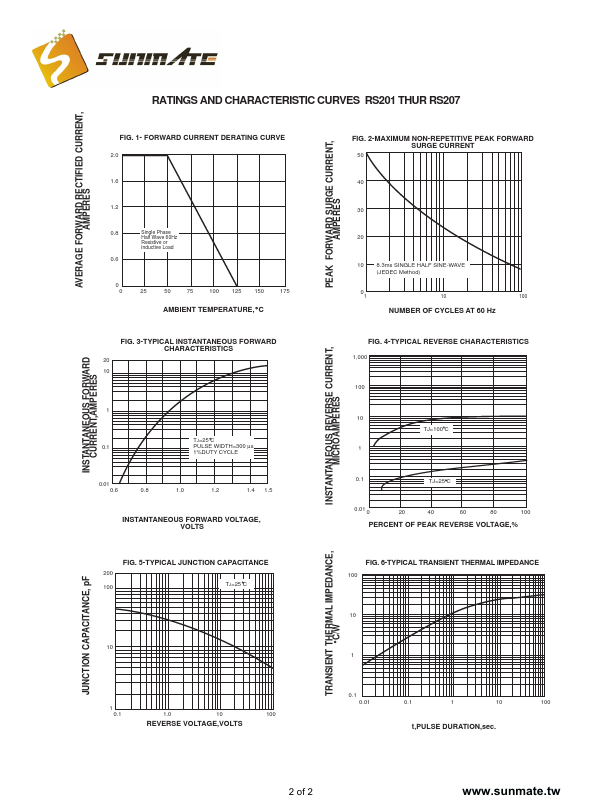

datasheet Preview Page 2

Datasheet Details

Part number	RS201
Manufacturer	Sunmate
File Size	664.75 KB
Description	SILICON BRIDGE RECTIFIERS
Datasheet	RS201-Sunmate.pdf

RS201 Product details

Features

! Ideal for printed circuit boards ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed: 260 C/10 seconds,0.375 ”(9.5mm) lead length, 5 lbs. (2.3kg) tension ! The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Mechanical Data ! Case: Molded plastic body ! Terminals: Plated leads solderable per ! MIL-STD-750, Method 2026 ! Polarity: Polarity symbols marked on case ! Mounting Position: Any ! Weight:0.069 ounce, 1.9.
