RS5AC SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

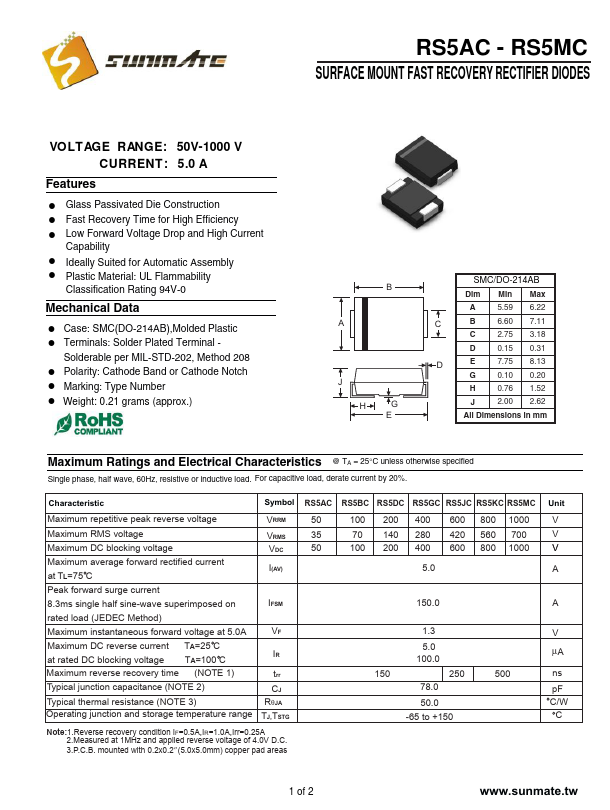

📥 Download Datasheet Datasheet Preview Page 1

Description

RS5AC - RS5MC SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50V-1000 V CURRENT: 5.0 A .

📥 Download Datasheet

Preview of RS5AC PDF

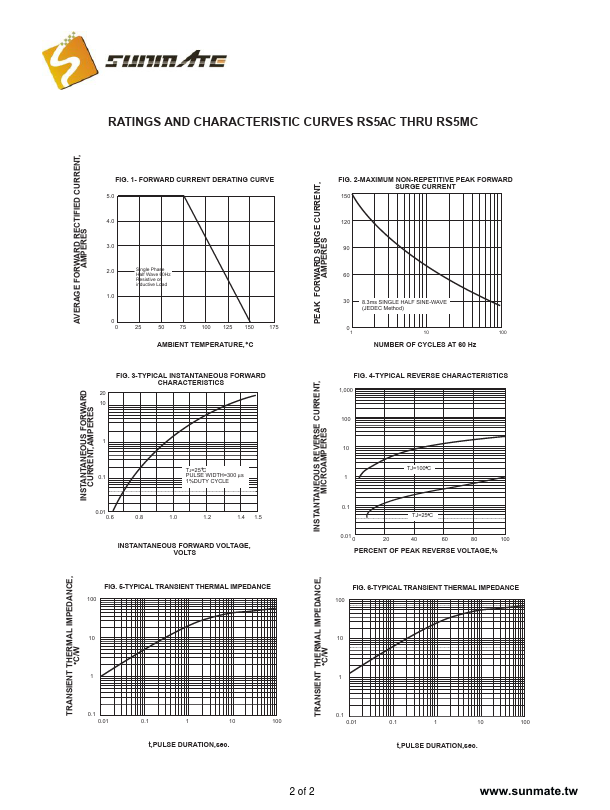

datasheet Preview Page 2

Datasheet Specifications

Part number
RS5AC
Manufacturer
Sunmate
File Size
327.76 KB
Datasheet
RS5AC-Sunmate.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Features

* ! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMC(DO-214AB),Molded Plastic ! Terminals
