RS603, RS601 SILICON BRIDGE RECTIFIERS

Sunmate

Description

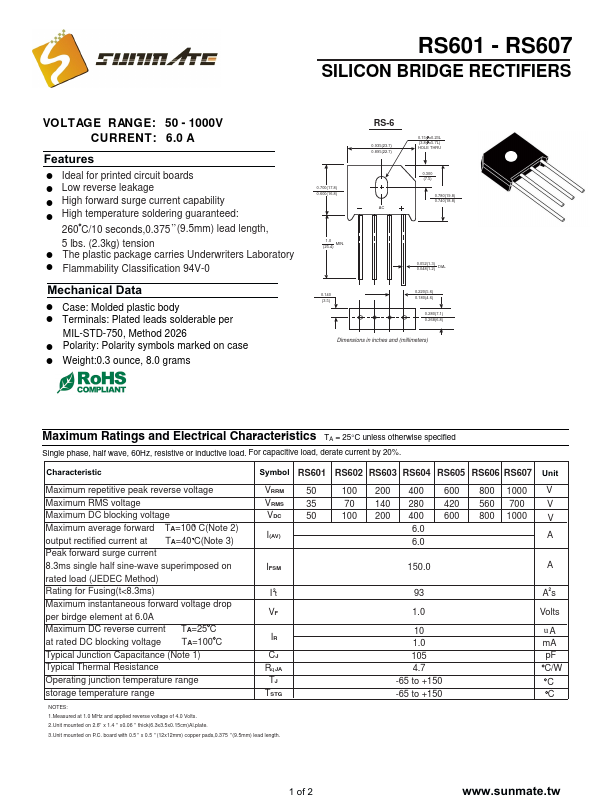

RS601 - RS607 SILICON BRIDGE RECTIFIERS VOLTAGE RANGE: 50 - 1000V CURRENT: 6.0 A .

📥 Download Datasheet

RS603 Datasheet Preview — This datasheet PDF includes multiple part numbers: RS603, RS601. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RS603, RS601
Manufacturer: Sunmate
File Size: 485.84 KB
Datasheet: RS601-Sunmate.pdf
Description: SILICON BRIDGE RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: RS603, RS601.
Please refer to the document for exact specifications by model.

Features

* ! Ideal for printed circuit boards ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed: 260 C/10 seconds,0.375 ”(9.5mm) lead length, 5 lbs. (2.3kg) tension ! The plastic package carries Underwriters Laboratory ! Flammability Classification 94V-0 Mech
